Individual hose record

371-3115 Hose Repair Specifications

Excavator · Caterpillar · CAT®314F CR · Control Lever

Finished length310 mm

Locate this hose

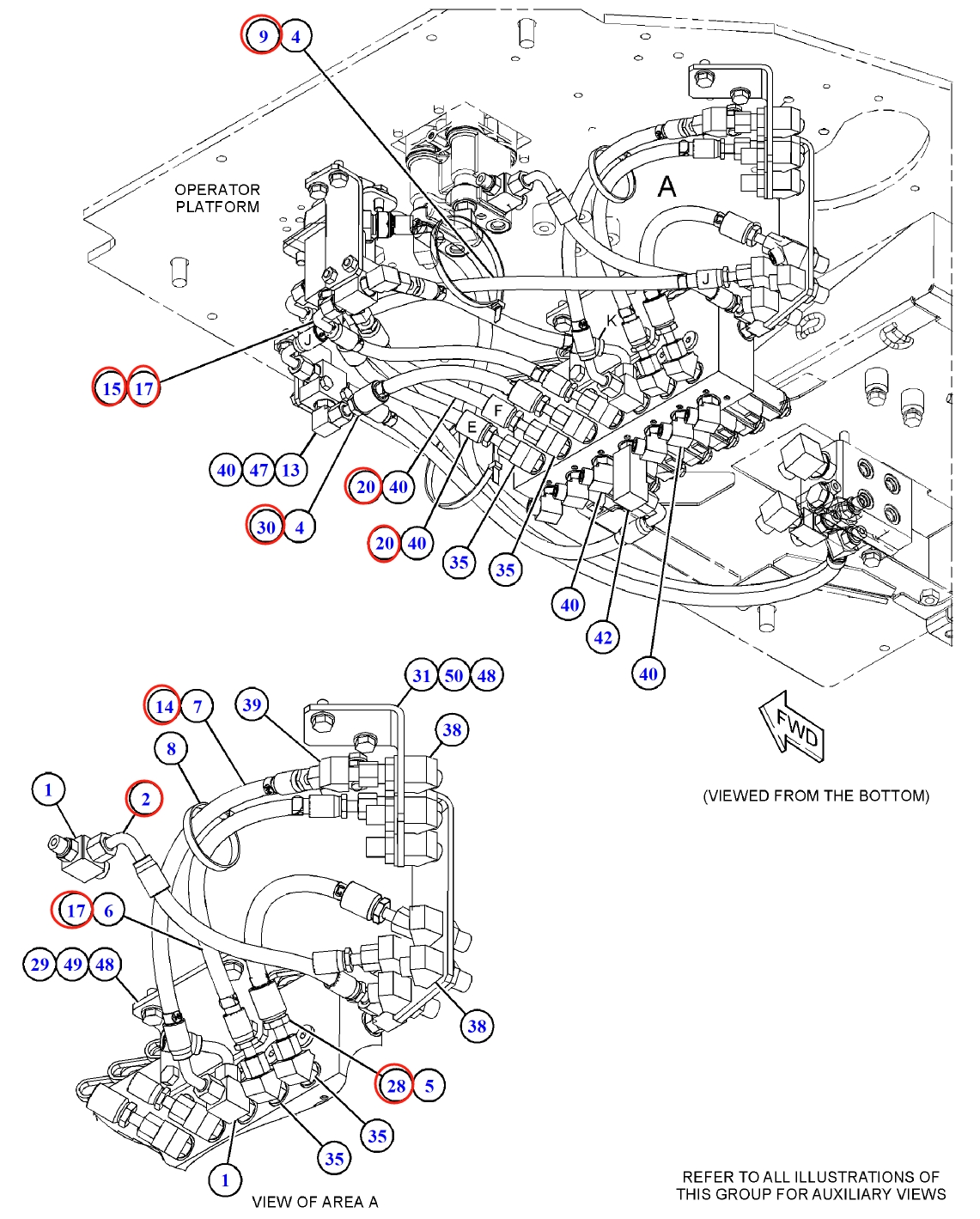

Installation diagram — Pipe No. 28

Locate Pipe No. 28 in the diagram, then confirm part number 371-3115 before removing the hose.

Part number: 371-3115
Diagram pipe number: 28
Installation route: 中转接头~减压阀(驾驶室)前
Hose specification: DN10;1SN-6;10.4Mpa
Finished length: 310 mm
Working pressure: 10.4 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 15

Installation route: 中转接头~模式转换阀(驾驶室)

Length: 270 mm
Specification: DN10;1SN-06;18MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

Diagram Pipe No. 17

Installation route: 中转接头~减压阀(驾驶室)前

Length: 430 mm
Specification: DN10;-6;10.3Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
