Individual hose record
187-5669 Hose Repair Specifications
Excavator · Caterpillar · CAT®316F · Pedal
Finished length2,670 mm
Locate this hose

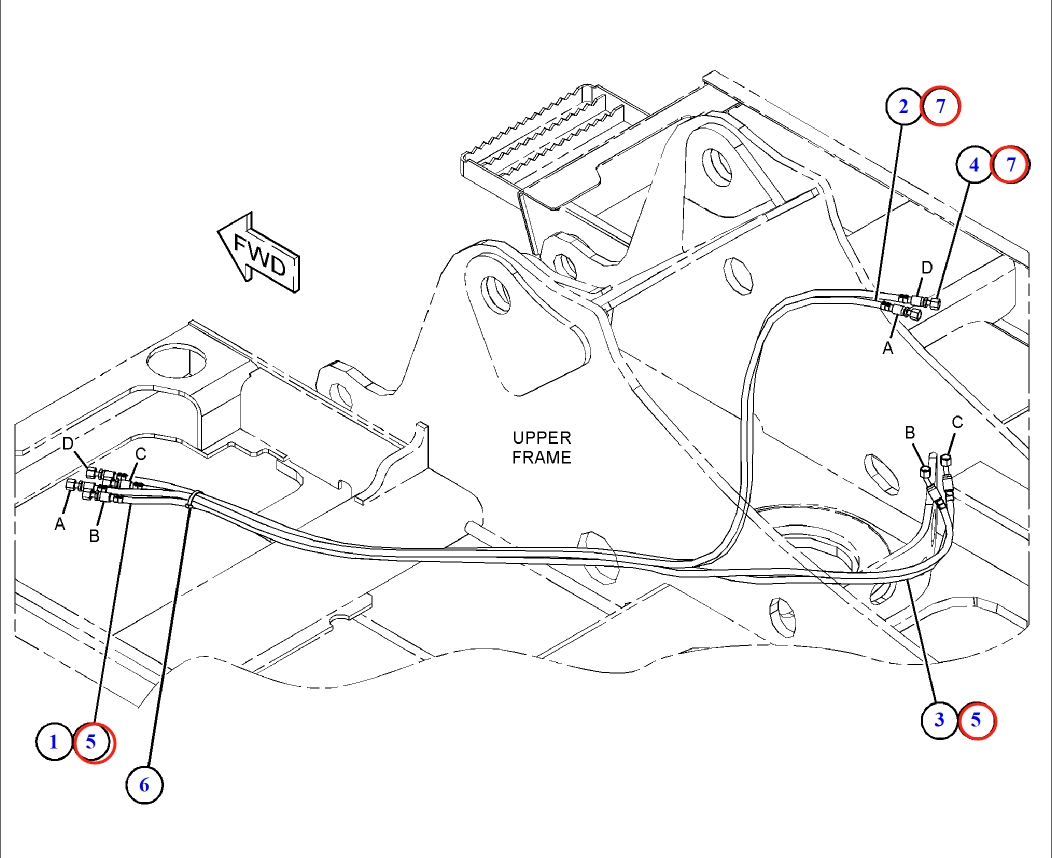

Installation diagram — Pipe No. 7
Locate Pipe No. 7 in the diagram, then confirm part number 187-5669 before removing the hose.
Repair specifications
- Part number
- 187-5669
- Diagram pipe number
- 7
- Installation route
- 行走踏板~分配阀上
- Hose specification
- DN10;-6;10.3Mpa
- Finished length
- 2,670 mm
- Working pressure
- 10.3 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 2
For reference only. Confirm the actual hose before fabrication.
