Individual hose record
4474678 Hose Repair Specifications
Excavator · Hitachi · ZX75US-3 · Attachments – Lock Valve
Finished length550 mm
Locate this hose

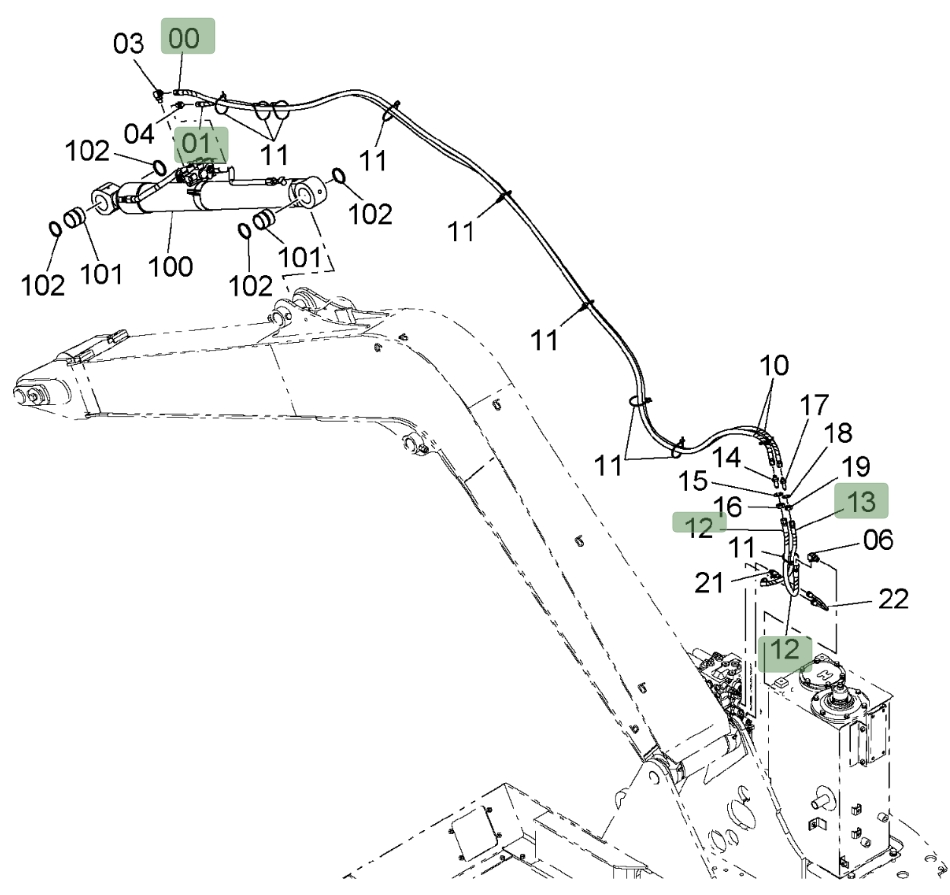

Installation diagram — Pipe No. 12
Locate Pipe No. 12 in the diagram, then confirm part number 4474678 before removing the hose.
Repair specifications
- Part number
- 4474678
- Diagram pipe number
- 12
- Installation route
- 液压油箱~接头(锁止阀)
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 550 mm
- Working pressure
- 18 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Quantity
- 1
For reference only. Confirm the actual hose before fabrication.
