Individual hose record

2184-1222D18 Hose Preview

Excavator · Doosan · DX140LCR · Swivel Joint

Finished length1,650 mm

Repair specifications

Part number: 2184-1222D18
Diagram pipe number: 1
Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
Hose specification: -
Finished length: 1,650 mm
Left fitting: Female threadOriginal Chinese: 内螺纹
Right fitting: 90° heavy-series flangeOriginal Chinese: 90°法兰-重型
Quantity: 2

Manual diagrams

Installation and Exploded Views

A red marker identifies a reviewed hose location.

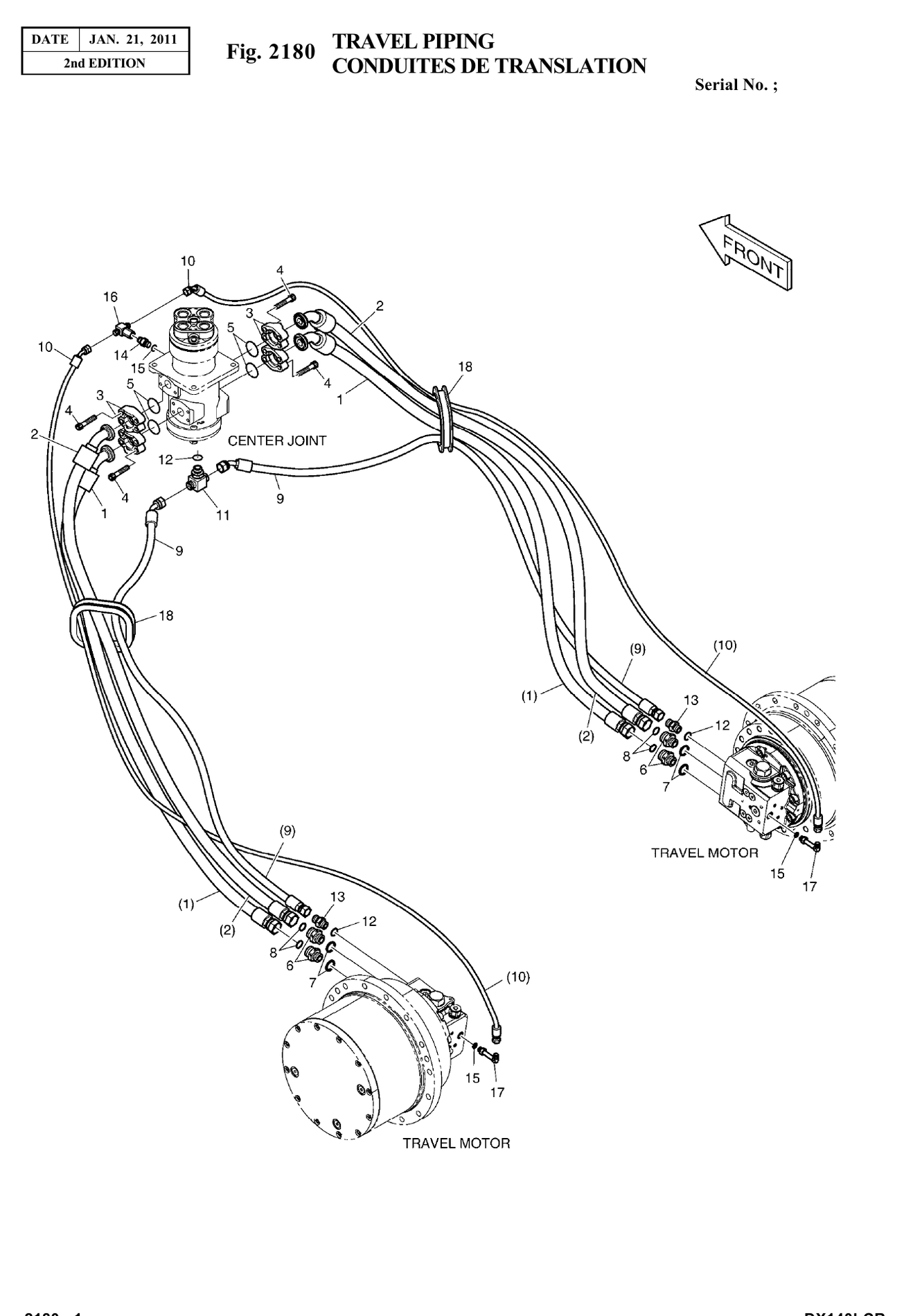

Installation diagram — Installation diagramUse this diagram to help identify the hose. Confirm the exact position and pipe number on the machine.Doosan DX140LCR Excavator Parts ManualManual page 326 · Printed page 2180-1 · Fig. 2180View full-size

For reference only. Confirm the actual hose before fabrication.
