Individual hose record

107-1486 Hose Repair Specifications

Excavator · Caterpillar · CAT®307-A · Hydraulic Pump

Finished length325 mm

Locate this hose

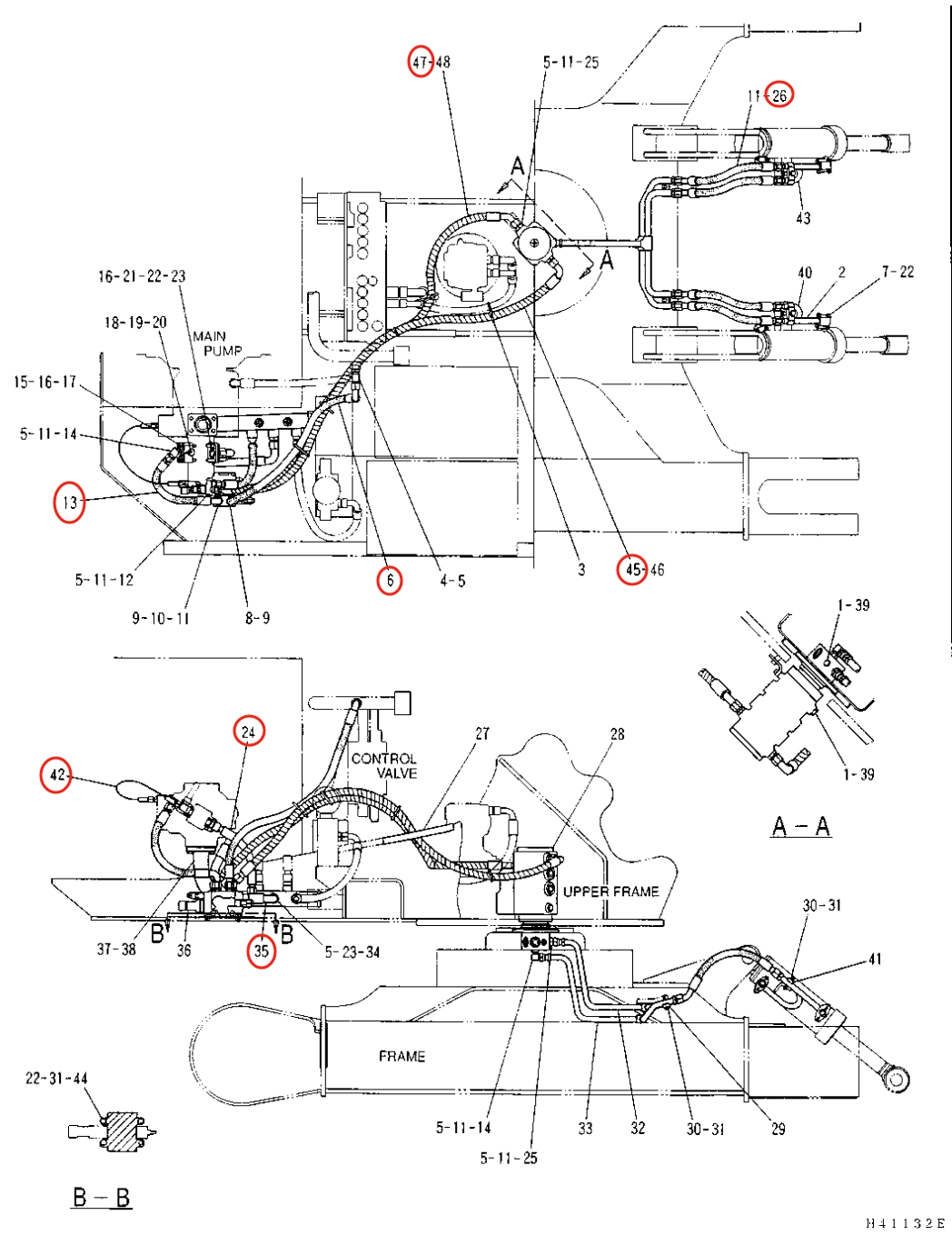

Installation diagram — Pipe No. 24

Locate Pipe No. 24 in the diagram, then confirm part number 107-1486 before removing the hose.

Caterpillar CAT®307-A installation diagram showing hydraulic hose 107-1486 at Pipe No. 24 — Caterpillar CAT®307-APart 107-1486 · Pipe No. 24Open full-size diagram

Repair specifications

Part number: 107-1486
Diagram pipe number: 24
Installation route: 液压泵~控制阀(液压泵下)
Hose specification: DN13;1SN-8;14Mpa
Finished length: 325 mm
Working pressure: 14 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 42

108-7285

Installation route: 液压泵后~液压泵

Length: 440 mm
Specification: DN6;-4;10.3Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 61

108-7267

Installation route: 液压泵~过渡接头(液压泵右)

Length: 340 mm
Specification: DN6;-4;10.3Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
