Individual hose record

8K-4076 Hose Repair Specifications

Excavator · Caterpillar · CAT®235D · Control Valve

Finished length1,710 mm

Locate this hose

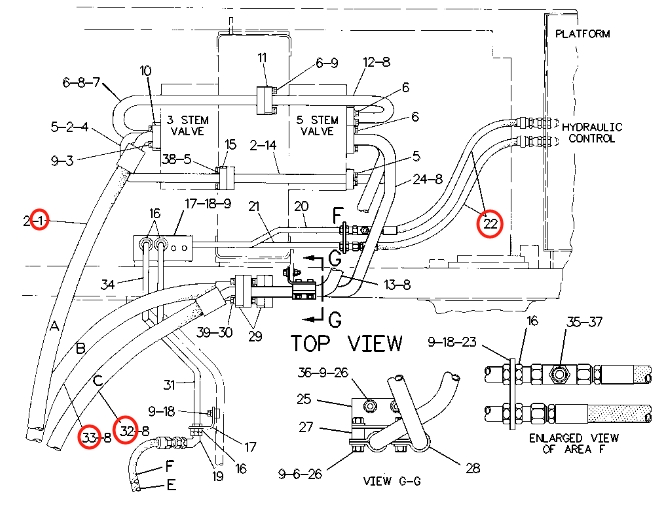

Installation diagram — Pipe No. 33

Locate Pipe No. 33 in the diagram, then confirm part number 8K-4076 before removing the hose.

Caterpillar CAT®235D installation diagram showing hydraulic hose 8K-4076 at Pipe No. 33 — Caterpillar CAT®235DPart 8K-4076 · Pipe No. 33Open full-size diagram

Repair specifications

Part number: 8K-4076
Diagram pipe number: 33
Installation route: 分配阀~过渡阀块(液压油箱后左)
Hose specification: DN32;4SP-20;35Mpa
Finished length: 1,710 mm
Working pressure: 35 MPa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Quantity: 1

For reference only. Confirm the actual hose before fabrication.
