Individual hose record
087-6582 Hose Repair Specifications
Excavator · Caterpillar · CAT®314E LCR · Supply and Return Valve
Finished length400 mm
Locate this hose

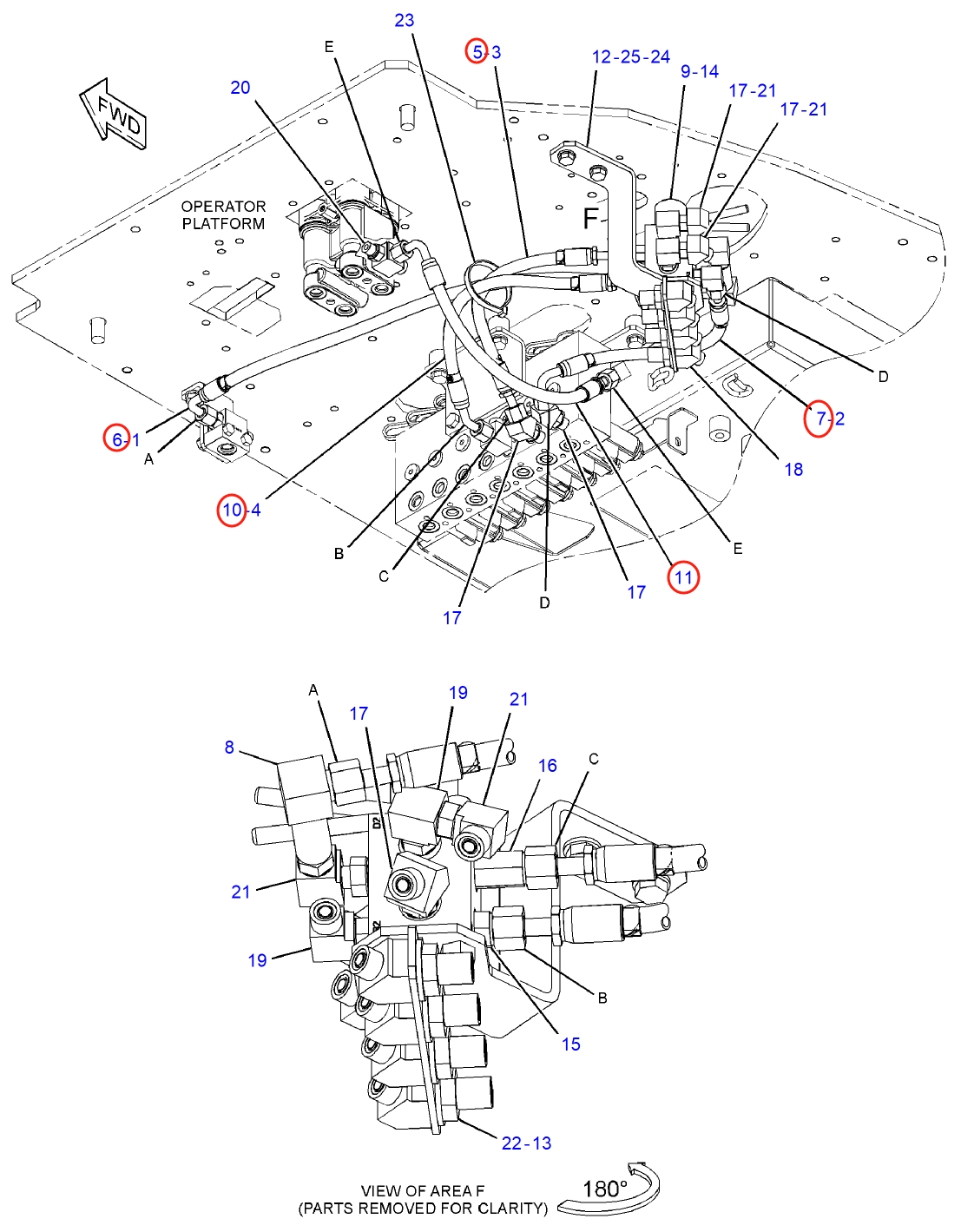

Installation diagram — Pipe No. 5
Locate Pipe No. 5 in the diagram, then confirm part number 087-6582 before removing the hose.
Repair specifications
- Part number
- 087-6582
- Diagram pipe number
- 5
- Installation route
- 进回油阀~减压阀(驾驶室)
- Hose specification
- DN10;1SN-6;10.4Mpa
- Finished length
- 400 mm
- Working pressure
- 10.4 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
For reference only. Confirm the actual hose before fabrication.
