Individual hose record

159005A1 Hose Repair Specifications

Excavator · Case · CX470C · Swivel Joint

Finished length3,250 mm

Locate this hose

Installation diagram — Pipe No. 6

Locate Pipe No. 6 in the diagram, then confirm part number 159005A1 before removing the hose.

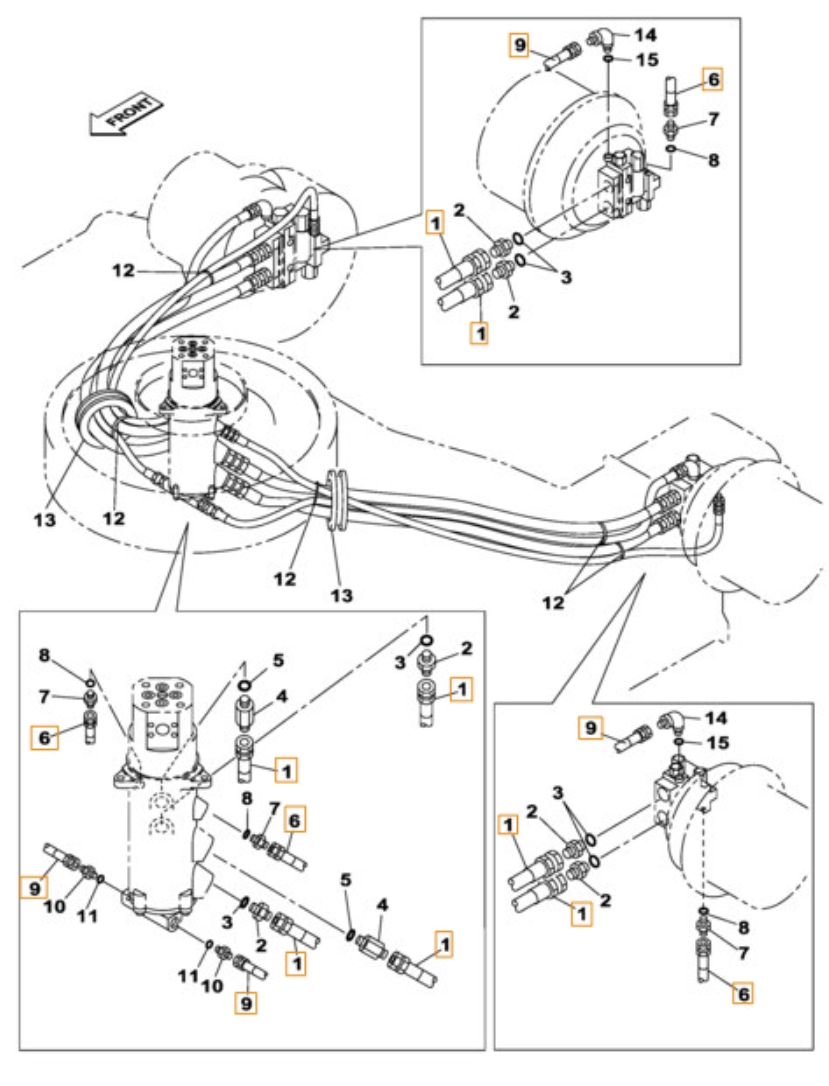

Case CX470C installation diagram showing hydraulic hose 159005A1 at Pipe No. 6 — **Case CX470C**Part 159005A1 · Pipe No. 6Open full-size diagram

Repair specifications

Part number: 159005A1
Diagram pipe number: 6
Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 3,250 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 2

Same system
