Individual hose record

KHJ2068 Hose Repair Specifications

Excavator · Case · CX220B · Grease Lines

Finished length2,250 mm

Locate this hose

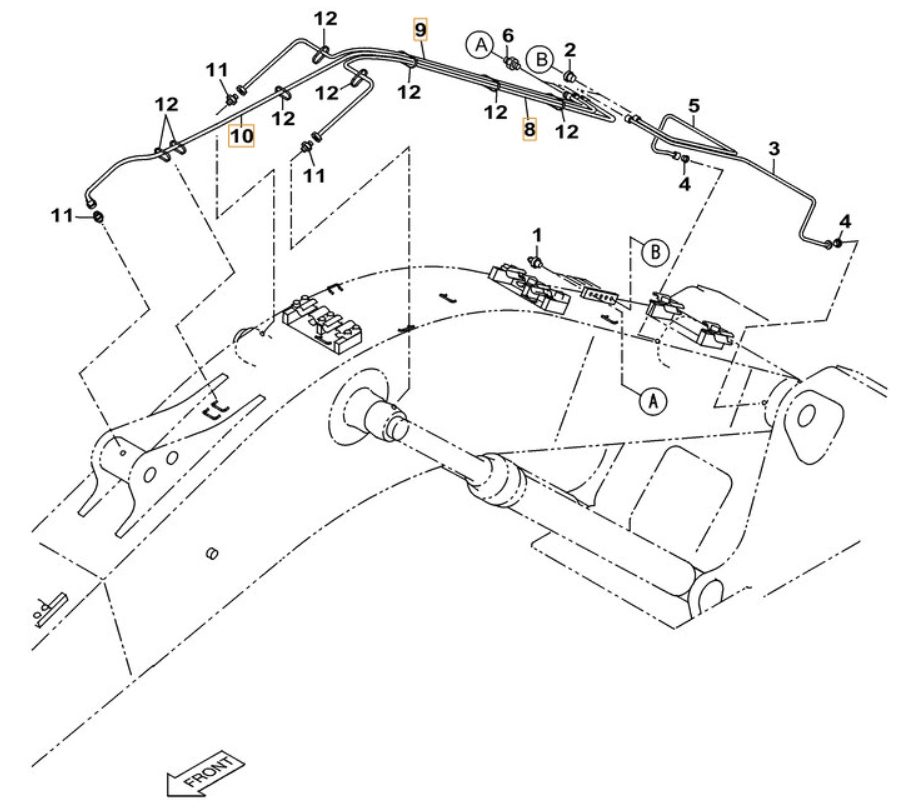

Installation diagram — Pipe No. 8

Locate Pipe No. 8 in the diagram, then confirm part number KHJ2068 before removing the hose.

Case CX220B installation diagram showing hydraulic hose KHJ2068 at Pipe No. 8
Case CX220BPart KHJ2068 · Pipe No. 8Open full-size diagram

Repair specifications

Part number
KHJ2068
Diagram pipe number
8
Installation route
Left boom-cylinder grease lineOriginal Chinese: 左大臂油缸黄油管
Hose specification
DN6;1SN-04;22.5MPa
Finished length
2,250 mm
Working pressure
22.5 MPa
Left fitting
British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting
British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity
1

Same system

Related Hoses

Diagram Pipe No. 10

KHJ2174

Installation route: Arm-cylinder grease lineOriginal Chinese: 小臂油缸黄油管

Length
3,100 mm
Specification
DN6;1SN-04;22.5MPa
Left fitting
British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting
British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
View full repair specifications

Optional cross-check

Ask an AI search tool to check this repair data

The question is already written for this machine or hose. Use a tool with web search enabled; treat its answer as a starting point and verify on the machine.

ChatGPT Perplexity Claude Google AI Mode
See the exact question being sent
I am checking hydraulic hose repair information for "KHJ2068 Hose Repair Specifications". Use web search and cite a source for every factual point. Compare this HoseSeek page with manufacturer manuals and reliable parts documentation: https://www.hoseseek.com/hoses/hose_4c8a34224bc57313d0d37375/
HoseSeek currently shows: part number: KHJ2068; diagram pipe number: 8; installation route: Left boom-cylinder grease line; hose specification: DN6;1SN-04;22.5MPa; finished length in millimetres: 2250; left fitting: British female thread, 60° external cone seat; right fitting: British female thread, 60° external cone seat.

Verify, where applicable:
1. Exact machine model and any serial-number range.
2. Hydraulic system and installation route.
3. Hose part number and diagram pipe number.
4. Finished length, hose specification, and pressure rating.
5. Both end fittings, including thread, sealing seat, size, and angle.
6. Installation-diagram position and routing.

State explicitly what you could not verify. Do not infer a missing dimension or fitting. End with a short on-machine checklist for a hose repair technician.

For reference only. Confirm the actual hose before fabrication.
