Individual hose record
8K-0800 Hose Repair Specifications
Excavator · Caterpillar · CAT®225 · Swivel Joint
Finished length894 mm
Locate this hose

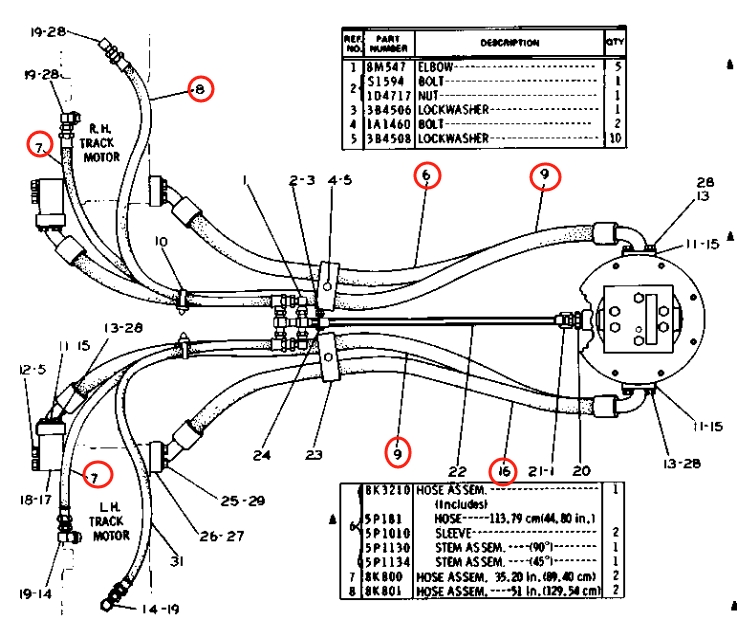

Installation diagram — Pipe No. 7
Locate Pipe No. 7 in the diagram, then confirm part number 8K-0800 before removing the hose.
Repair specifications
- Part number
- 8K-0800
- Diagram pipe number
- 7
- Installation route
- Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
- Hose specification
- DN13;1SN-8;14Mpa
- Finished length
- 894 mm
- Working pressure
- 14 MPa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Quantity
- 2
For reference only. Confirm the actual hose before fabrication.
