Individual hose record
4649405 Hose Repair Specifications
Excavator · Hitachi · ZXS370F-3 · Control Lever
Finished length350 mm
Locate this hose

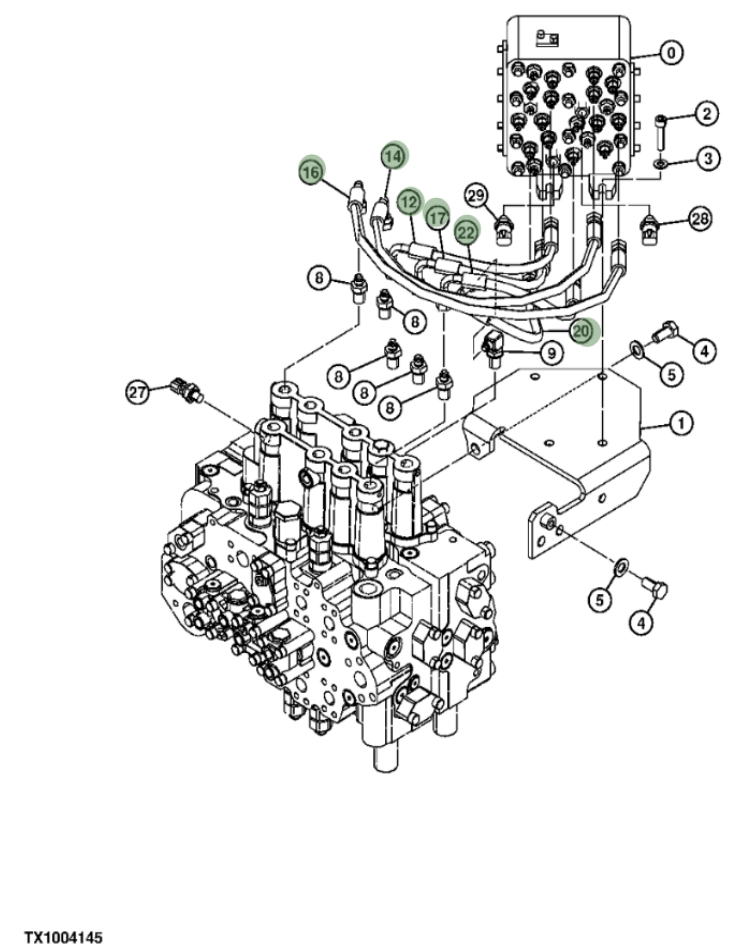

Installation diagram — Pipe No. 20
Locate Pipe No. 20 in the diagram, then confirm part number 4649405 before removing the hose.
Repair specifications
- Part number
- 4649405
- Diagram pipe number
- 20
- Installation route
- 中转接头~分配阀上
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 350 mm
- Working pressure
- 18 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Quantity
- 1
