Individual hose record

307-4966 Hose Repair Specifications

Excavator · Caterpillar · CAT®314D LCR · Solenoid Valve

Finished length280 mm

Locate this hose

Installation diagram — Pipe No. 42

Locate Pipe No. 42 in the diagram, then confirm part number 307-4966 before removing the hose.

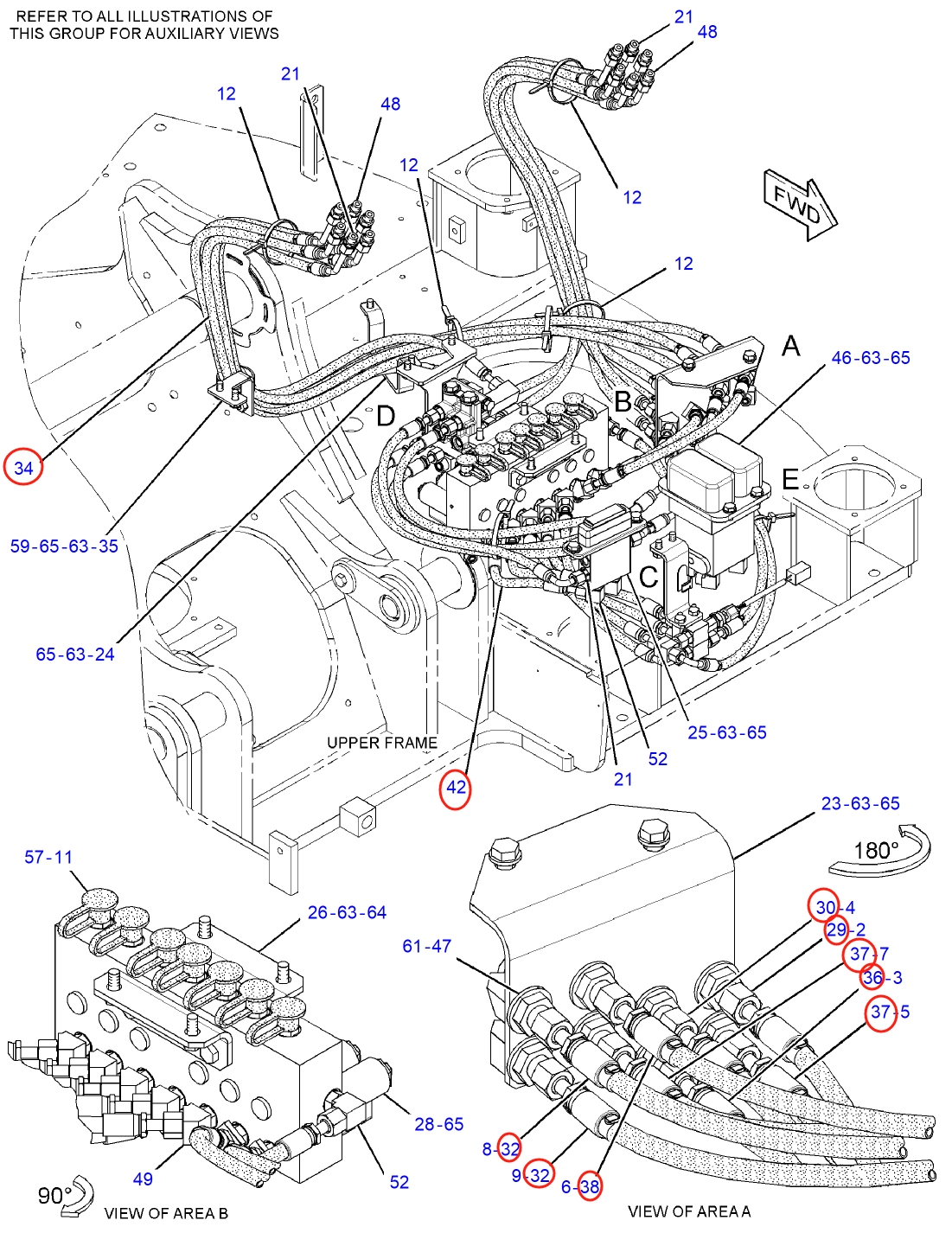

Caterpillar CAT®314D LCR installation diagram showing hydraulic hose 307-4966 at Pipe No. 42 — **Caterpillar CAT®314D LCR**Part 307-4966 · Pipe No. 42Open full-size diagram

Repair specifications

Part number: 307-4966
Diagram pipe number: 42
Installation route: 电磁阀(行走踏板右)~模式转换阀
Hose specification: DN10;1SN-6;10.4Mpa
Finished length: 280 mm
Working pressure: 10.4 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 2

Same system

Related Hoses

Diagram Pipe No. 32

319-9940

Installation route: 电磁阀(分配阀右下)~液压油箱

Length: 2,050 mm
Specification: DN10;6SH-6;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 41

289-5709

Installation route: 电磁阀(分配阀右)~电磁阀(分配阀右下)

Length: 340 mm
Specification: DN10;6SH-6;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 1

4I-6391

Installation route: 电磁阀(行走踏板右)~模式转换阀

Length: 650 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 38

286-6815

Installation route: 电磁阀(分配阀左下)~电磁阀(分配阀右下)

Length: 450 mm
Specification: DN10;6SH-6;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 17

104-8950

Installation route: 电磁阀(驾驶室右)~模式转换阀

Length: 1,200 mm
Specification: DN10;-6;10.3Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 45

307-4979

Installation route: 电磁阀(行走踏板右前)~模式转换阀

Length: 430 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 20

143-4254

Installation route: 电磁阀(驾驶室右)~模式转换阀

Length: 1,160 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 1

121-6369

Installation route: 电磁阀(驾驶室)~过渡阀块(回转马达前)

Length: 950 mm
Specification: DN13;1SN-8;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
