Individual hose record

4208408 Hose Repair Specifications

Excavator · Hitachi · EX100WD · Hydraulic Tank

Finished length1,500 mm

Locate this hose

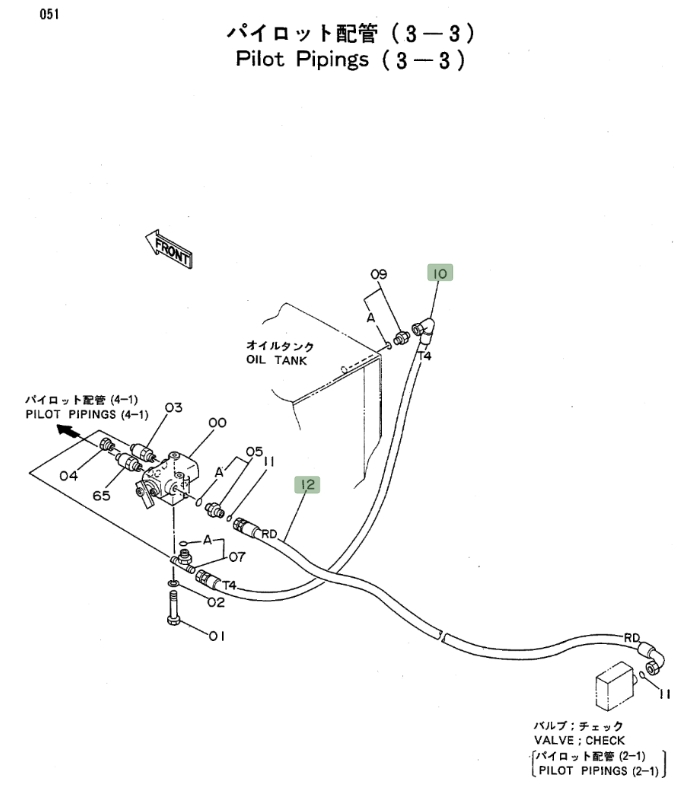

Installation diagram — Pipe No. 10

Locate Pipe No. 10 in the diagram, then confirm part number 4208408 before removing the hose.

Hitachi EX100WD installation diagram showing hydraulic hose 4208408 at Pipe No. 10 — Hitachi EX100WDPart 4208408 · Pipe No. 10Open full-size diagram

Repair specifications

Part number: 4208408
Diagram pipe number: 10
Installation route: 液压油箱~进回油阀
Hose specification: DN10;1层纤维-6;14MPa
Finished length: 1,500 mm
Working pressure: 14 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 12

4217326

Installation route: 液压油箱~过渡阀块(液压油箱)

Length: 450 mm
Specification: DN6;2层纤维-4;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
