Individual hose record
179-7778 Hose Repair Specifications
Excavator · Caterpillar · CAT®313F L · Swivel Joint
Finished length1,900 mm
Locate this hose

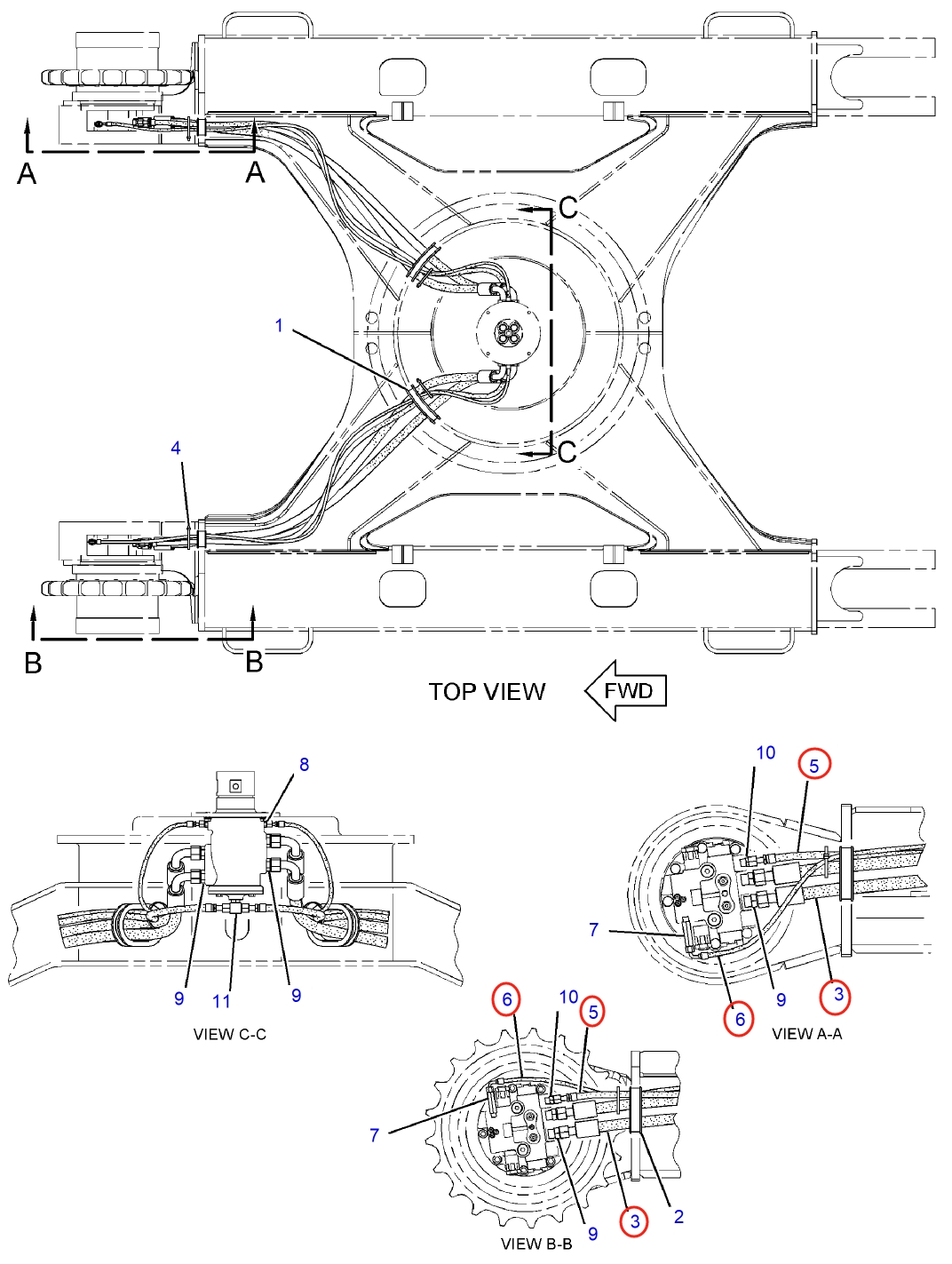

Installation diagram — Pipe No. 5
Locate Pipe No. 5 in the diagram, then confirm part number 179-7778 before removing the hose.
Repair specifications
- Part number
- 179-7778
- Diagram pipe number
- 5
- Installation route
- 回转接头~行走马达(规格1)
- Hose specification
- DN13;-8;10.3Mpa
- Finished length
- 1,900 mm
- Working pressure
- 10.3 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 2
Same system
Related Hoses
For reference only. Confirm the actual hose before fabrication.
