Individual hose record
4270236 Hose Repair Specifications
Excavator · Hitachi · EX400LC · Hydraulic Pump
Finished length750 mm
Locate this hose

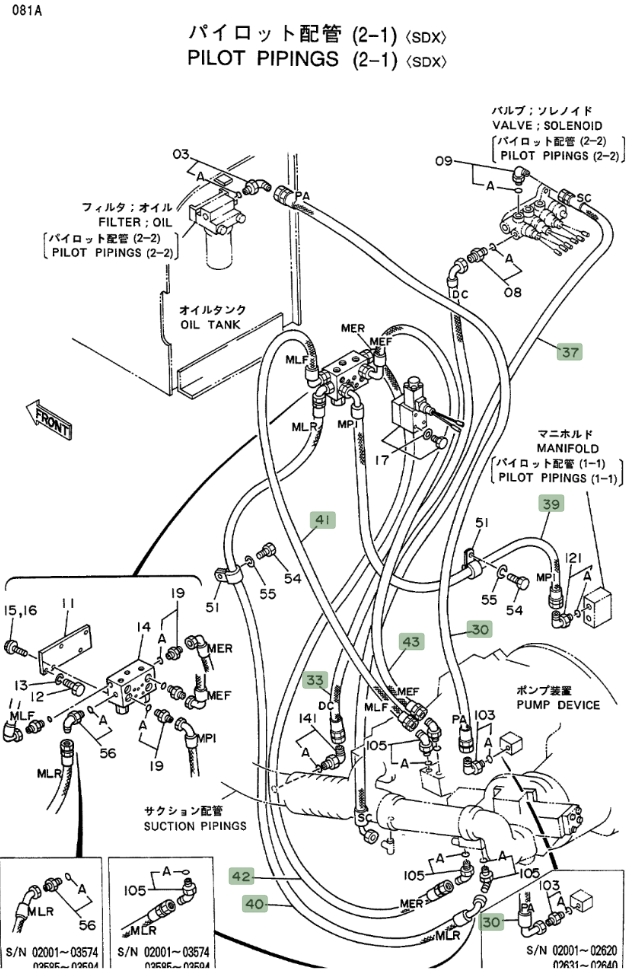

Installation diagram — Pipe No. 30
Locate Pipe No. 30 in the diagram, then confirm part number 4270236 before removing the hose.
Repair specifications
- Part number
- 4270236
- Diagram pipe number
- 30
- Installation route
- 液压泵~先导滤芯
- Hose specification
- DN12;1SN-8;7MPa
- Finished length
- 750 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
