Individual hose record

340-2962 Hose Repair Specifications

Excavator · Caterpillar · CAT®318F · Control Lever

Finished length1,860 mm

Locate this hose

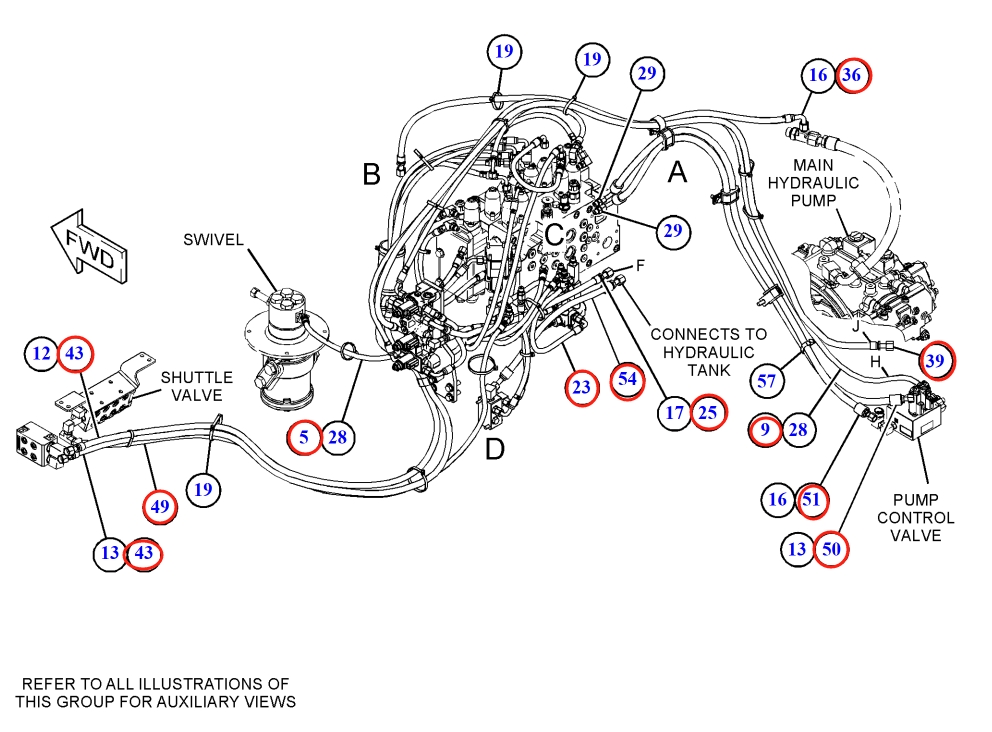

Installation diagram — Pipe No. 49

Locate Pipe No. 49 in the diagram, then confirm part number 340-2962 before removing the hose.

Part number: 340-2962
Diagram pipe number: 49
Installation route: 中转接头~分配阀下
Hose specification: DN10;1SN-6;10.4Mpa
Finished length: 1,860 mm
Working pressure: 10.4 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 9

Installation route: 中转接头~分配阀上

Length: 2,350 mm
Specification: DN10;-6;10.3Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 13

Installation route: 中转接头~分配阀上

Length: 2,430 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
