Individual hose record
123-2636 Hose Repair Specifications
Excavator · Caterpillar · CAT®311B · Hydraulic Pump
Finished length760 mm
Locate this hose

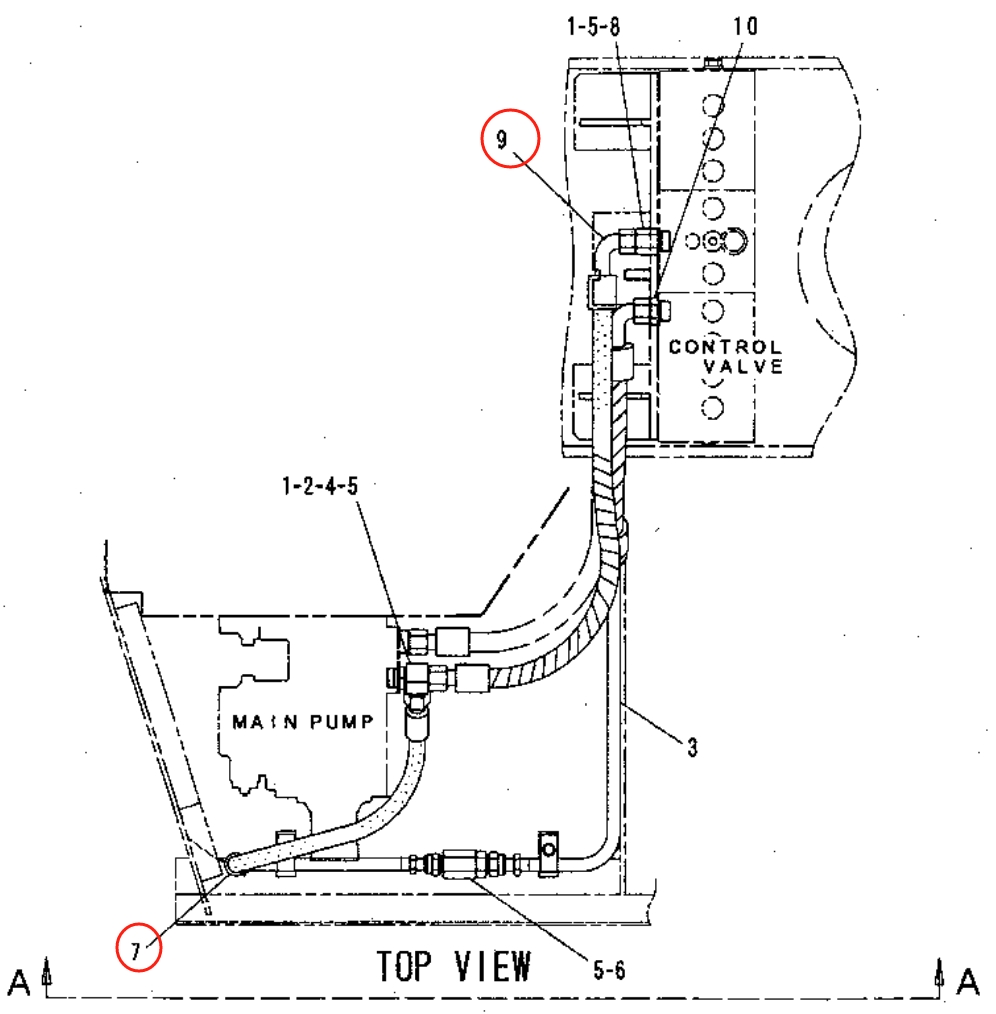

Installation diagram — Pipe No. 7
Locate Pipe No. 7 in the diagram, then confirm part number 123-2636 before removing the hose.
Repair specifications
- Part number
- 123-2636
- Diagram pipe number
- 7
- Installation route
- 液压泵前~铁管(液压泵右)
- Hose specification
- DN16;6SH-10;42Mpa
- Finished length
- 760 mm
- Working pressure
- 42 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
