Individual hose record
105-6458 Hose Repair Specifications
Excavator · Caterpillar · CAT®317 N · Grease Lines
Finished length2,400 mm
Locate this hose

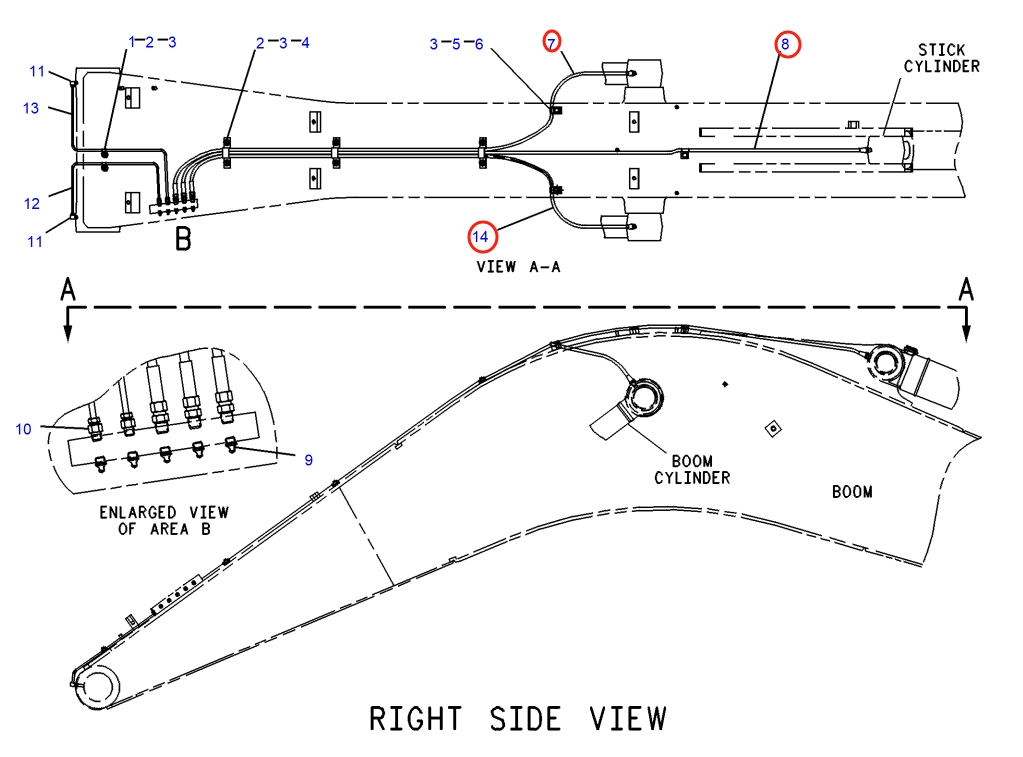

Installation diagram — Pipe No. 7
Locate Pipe No. 7 in the diagram, then confirm part number 105-6458 before removing the hose.
Repair specifications
- Part number
- 105-6458
- Diagram pipe number
- 7
- Installation route
- Left boom-cylinder grease lineOriginal Chinese: 左大臂油缸黄油管
- Hose specification
- DN6;-4;19.2Mpa
- Finished length
- 2,400 mm
- Working pressure
- 19.2 MPa
- Left fitting
- 美制锥形外螺纹30°内锥
- Right fitting
- 美制锥形外螺纹
- Quantity
- 1
Same system
Related Hoses
Diagram Pipe No. 14
4I-6610
Installation route: Right boom-cylinder grease lineOriginal Chinese: 右大臂油缸黄油管
- Length
- 2,300 mm
- Specification
- DN6;-4;19.2Mpa
- Left fitting
- 美制锥形外螺纹30°内锥
- Right fitting
- 美制锥形外螺纹
For reference only. Confirm the actual hose before fabrication.
