Individual hose record

730502006303 Hose Repair Specifications

Excavator · Sunward · SWE215F-5 · Attachments – Other Kits

Finished length1,300 mm

Locate this hose

Installation diagram — Pipe No. 6

Locate Pipe No. 6 in the diagram, then confirm part number 730502006303 before removing the hose.

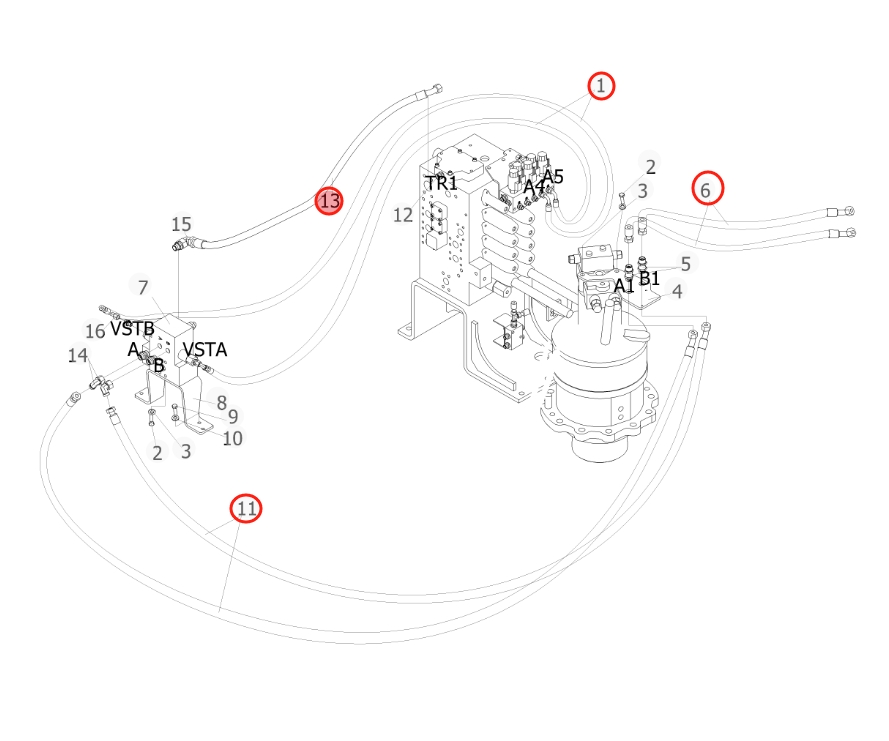

Sunward SWE215F-5 installation diagram showing hydraulic hose 730502006303 at Pipe No. 6 — Sunward SWE215F-5Part 730502006303 · Pipe No. 6Open full-size diagram

Repair specifications

Part number: 730502006303
Diagram pipe number: 6
Installation route: 回转马达上B1~大臂(回转)
Hose specification: DN12;3SN-08;41.5MPa
Finished length: 1,300 mm
Working pressure: 41.5 MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 6

730502006303

Installation route: 回转马达上A1~大臂(回转)

Length: 1,300 mm
Specification: DN12;3SN-08;41.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
