Individual hose record

152435A1 Hose Repair Specifications

Excavator · Case · CX210B · Swivel Joint

Finished length2,150 mm

Locate this hose

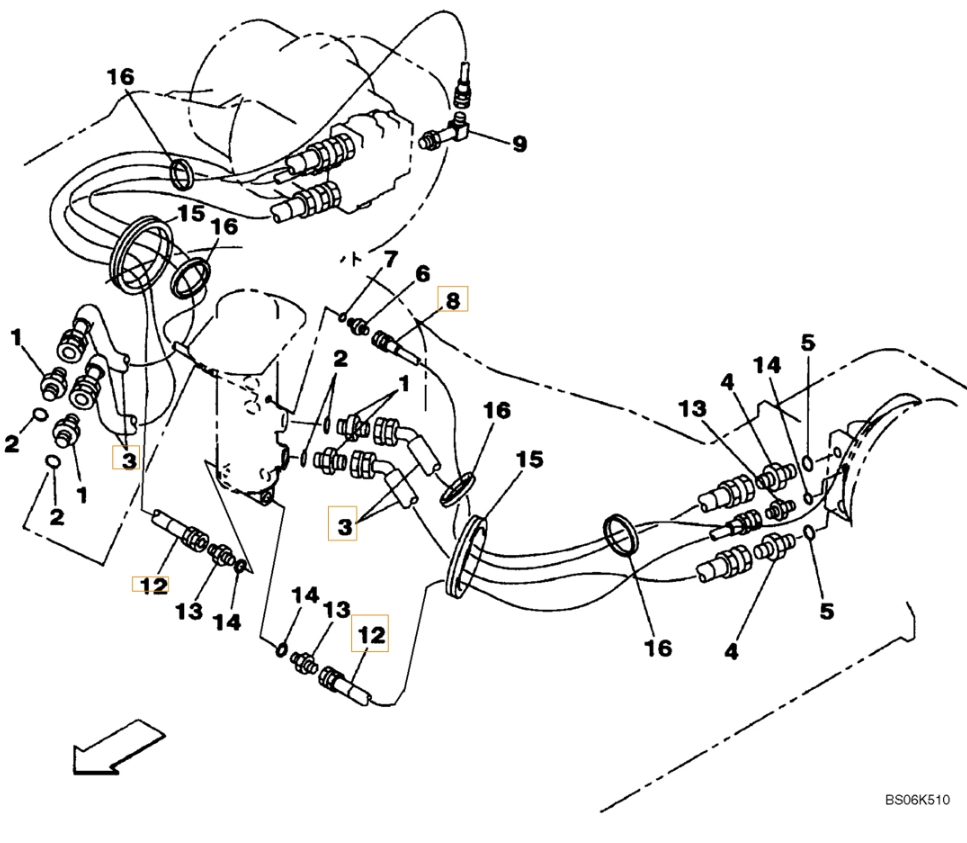

Installation diagram — Pipe No. 12

Locate Pipe No. 12 in the diagram, then confirm part number 152435A1 before removing the hose.

Case CX210B installation diagram showing hydraulic hose 152435A1 at Pipe No. 12
Case CX210BPart 152435A1 · Pipe No. 12Open full-size diagram

Repair specifications

Part number
152435A1
Diagram pipe number
12
Installation route
Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
Hose specification
DN13;2SN-08;27.5MPa
Finished length
2,150 mm
Working pressure
27.5 MPa
Left fitting
British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting
British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity
2

Same system

Related Hoses

Diagram Pipe No. 3

KRA1536

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length
2,120 mm
Specification
DN19;4SP-12;35MPa
Left fitting
British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting
45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥
View full repair specifications

Diagram Pipe No. 8

163805A1

Installation route: 回转接头~回转马达(回油)

Length
900 mm
Specification
DN13;2SN-08;27.5MPa
Left fitting
British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting
British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
View full repair specifications
