Individual hose record

6W-7665 Hose Repair Specifications

Excavator · Caterpillar · CAT®215B · Attachments – Lock Valve

Finished length5,180 mm

Locate this hose

Installation diagram — Pipe No. 1

Locate Pipe No. 1 in the diagram, then confirm part number 6W-7665 before removing the hose.

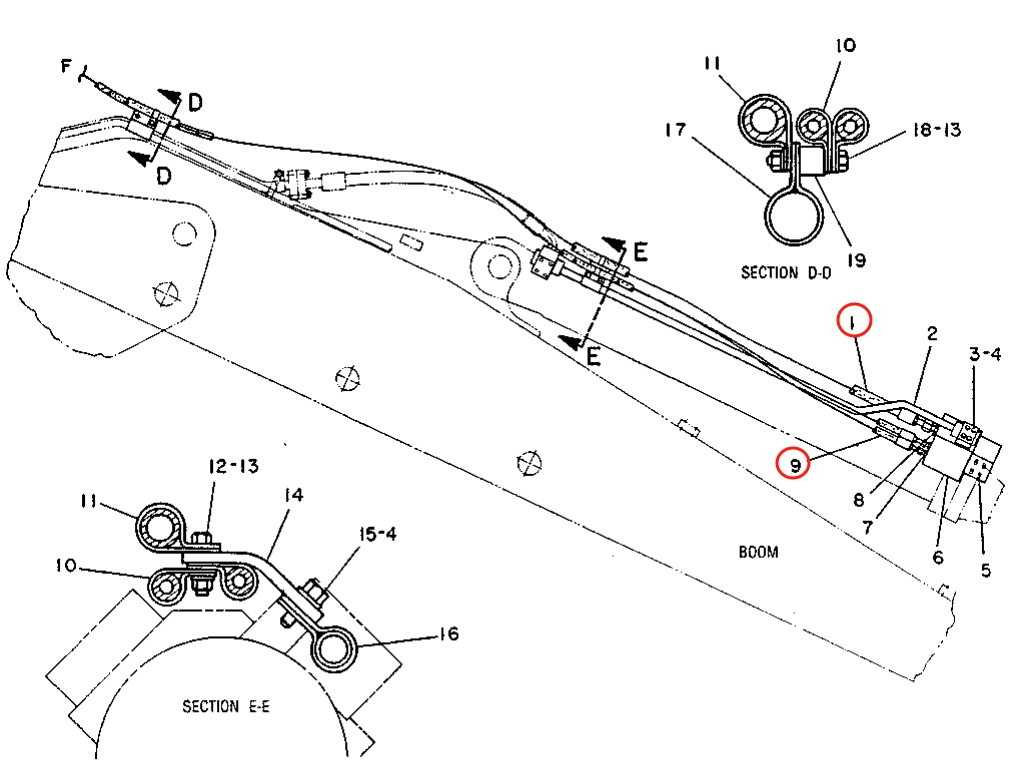

Caterpillar CAT®215B installation diagram showing hydraulic hose 6W-7665 at Pipe No. 1 — Caterpillar CAT®215BPart 6W-7665 · Pipe No. 1Open full-size diagram

Repair specifications

Part number: 6W-7665
Diagram pipe number: 1
Installation route: 小臂油缸锁止阀
Hose specification: DN19;4SP-12;28Mpa
Finished length: 5,180 mm
Working pressure: 28 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 1

6W-7641

Installation route: 小臂油缸锁止阀

Length: 4,680 mm
Specification: DN19;4SP-12;28Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 9

6W-7642

Installation route: 小臂油缸锁止阀

Length: 4,680 mm
Specification: DN10;4SP-6;28Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 9

6W-7664

Installation route: 小臂油缸锁止阀

Length: 5,240 mm
Specification: DN10;4SP-6;28Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
