F072512 Hydraulic Hose Specifications
Forestry Machine · John Deere · 1210G Forwarder
Total length800 mm

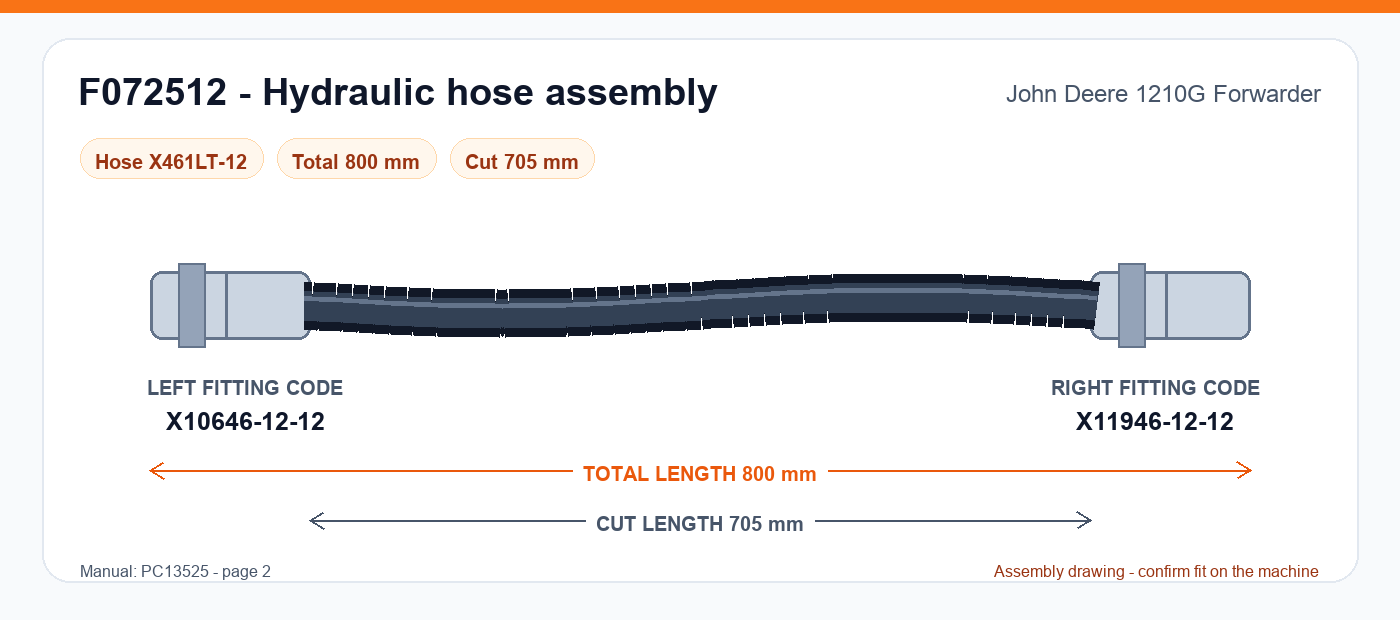

Hose drawing
Hose assembly drawing
Check the total length and both fitting codes before fabrication.
Repair measurements
These text values can be translated and copied. Confirm them against the machine before fabrication.
- Machine
- John Deere 1210G Forwarder
- Part number
- F072512
- Hose type
- X461LT-12
- Total length
- 800 mm
- Cut length
- 705 mm
- Left-end hydraulic fitting code
- X10646-12-12Look up this code
- Right-end hydraulic fitting code
- X11946-12-12Look up this code
- Manual reference
- PC13525, page 2
Hose assembly details
- Part number
- F072512
- Hose type
- X461LT-12
- Total length
- 800 mm
- Cut length
- 705 mm
- Left fitting code
- X10646-12-12
- Right fitting code
- X11946-12-12
- Application
- 1210G Forwarder: Stage V, Rotating and Leveling Cabin Gen II, Grey
- Manual page
- 2
