Individual hose record

4129123 Hose Repair Specifications

Excavator · Hitachi · EX80-5 · Grease Lines

Finished length600 mm

Locate this hose

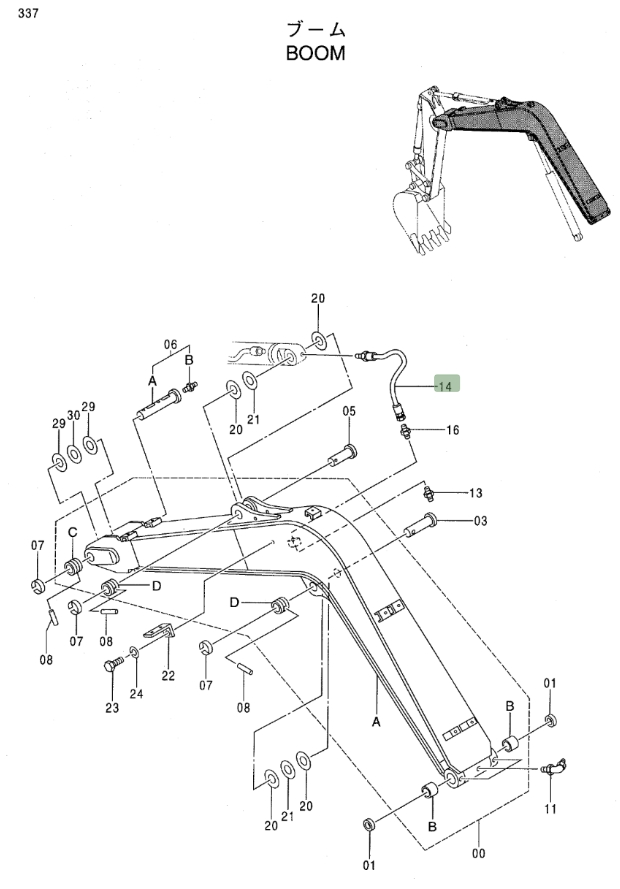

Installation diagram — Pipe No. 14

Locate Pipe No. 14 in the diagram, then confirm part number 4129123 before removing the hose.

Hitachi EX80-5 installation diagram showing hydraulic hose 4129123 at Pipe No. 14 — Hitachi EX80-5Part 4129123 · Pipe No. 14Open full-size diagram

Repair specifications

Part number: 4129123
Diagram pipe number: 14
Installation route: Arm-cylinder grease lineOriginal Chinese: 小臂油缸黄油管
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 600 mm
Working pressure: 22.5 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥
Quantity: 1

For reference only. Confirm the actual hose before fabrication.
