Individual hose record
4284507 Hose Repair Specifications
Excavator · Hitachi · ZX370 · Swivel Joint
Finished length2,300 mm
Locate this hose

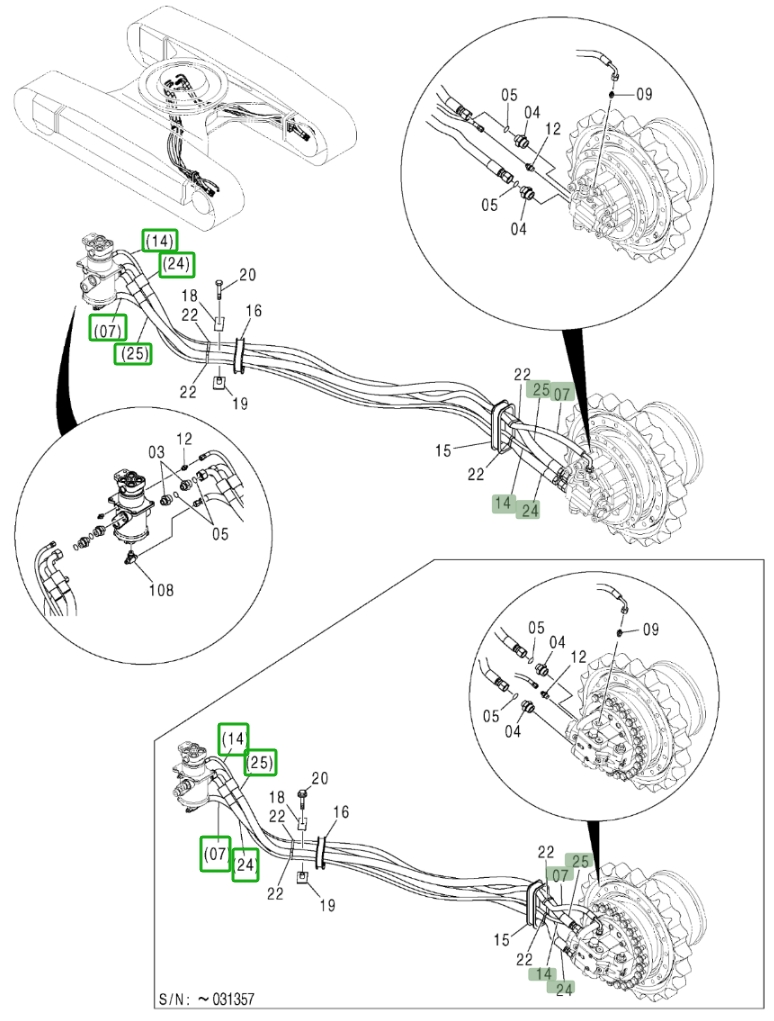

Installation diagram — Pipe No. 25
Locate Pipe No. 25 in the diagram, then confirm part number 4284507 before removing the hose.
Repair specifications
- Part number
- 4284507
- Diagram pipe number
- 25
- Installation route
- Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
- Hose specification
- DN25;4SP-16;32Mpa
- Finished length
- 2,300 mm
- Working pressure
- 32 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Quantity
- 1
Same system
Related Hoses
Diagram Pipe No. 24
4294425
Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
- Length
- 2,250 mm
- Specification
- DN25;4SP-16;32Mpa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Length
- 2,550 mm
- Specification
- DN13;1SN-08;16MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
Diagram Pipe No. 25
4294424
Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
- Length
- 2,250 mm
- Specification
- DN25;4SP-16;32Mpa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Length
- 960 mm
- Specification
- DN25;4SH-16;34.5Mpa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Length
- 960 mm
- Specification
- DN25;4SH-16;34.5Mpa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Length
- 2,400 mm
- Specification
- DN13;1SN-08;16MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Length
- 2,400 mm
- Specification
- DN25;4SP-16;32Mpa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
Optional cross-check
Ask an AI search tool to check this repair data
The question is already written for this machine or hose. Use a tool with web search enabled; treat its answer as a starting point and verify on the machine.
See the exact question being sent
I am checking hydraulic hose repair information for "4284507 Hose Repair Specifications". Use web search and cite a source for every factual point. Compare this HoseSeek page with manufacturer manuals and reliable parts documentation: https://www.hoseseek.com/hoses/hose_5c563392e85abec3745de34d/ HoseSeek currently shows: part number: 4284507; diagram pipe number: 25; installation route: Swivel joint → travel motor; hose specification: DN25;4SP-16;32Mpa; finished length in millimetres: 2300; left fitting: American female thread, flat-face seal; right fitting: 90° elbow, American female thread, flat-face seal. Verify, where applicable: 1. Exact machine model and any serial-number range. 2. Hydraulic system and installation route. 3. Hose part number and diagram pipe number. 4. Finished length, hose specification, and pressure rating. 5. Both end fittings, including thread, sealing seat, size, and angle. 6. Installation-diagram position and routing. State explicitly what you could not verify. Do not infer a missing dimension or fitting. End with a short on-machine checklist for a hose repair technician.
For reference only. Confirm the actual hose before fabrication.
