Hose assembly specifications

F059090 Hydraulic Hose Specifications

Forestry Machine · John Deere · 1210G Forwarder

Total length1,250 mm

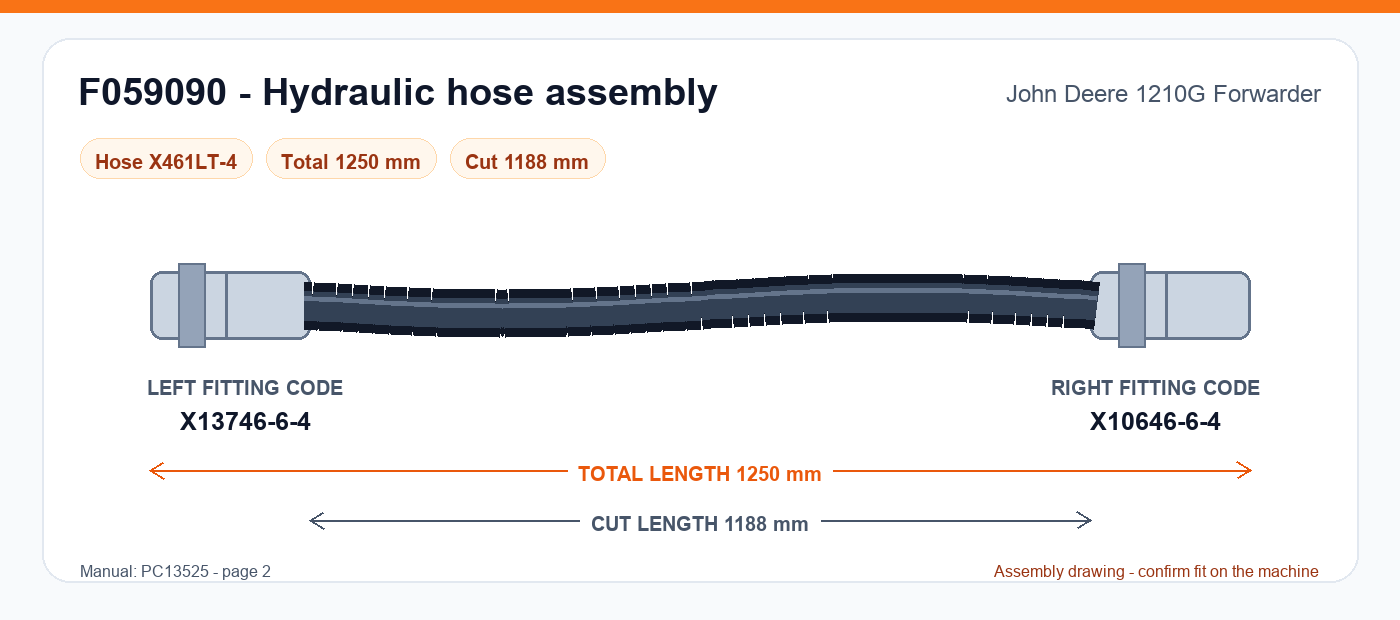

Hose drawing

Hose assembly drawing

Check the total length and both fitting codes before fabrication.

F059090 hydraulic hose assembly drawing for John Deere 1210G Forwarder - 1,250 mm total length, left fitting X13746-6-4, right fitting X10646-6-4 — F059090 - 1,250 mm total length. Select the drawing to open it full size.

Repair measurements

These text values can be translated and copied. Confirm them against the machine before fabrication.

Machine: John Deere 1210G Forwarder
Part number: F059090
Hose type: X461LT-4
Total length: 1,250 mm
Cut length: 1,188 mm
Left-end hydraulic fitting code: X13746-6-4Look up this code
Right-end hydraulic fitting code: X10646-6-4Look up this code
Manual reference: PC13525, page 2

Hose assembly details

Part number: F059090
Hose type: X461LT-4
Total length: 1,250 mm
Cut length: 1,188 mm
Left fitting code: X13746-6-4
Right fitting code: X10646-6-4
Application: 1210G Forwarder: Stage V, Rotating and Leveling Cabin Gen II, Grey
Manual page: 2

Download manual
