Individual hose record

6C-0879 Hose Repair Specifications

Excavator · Caterpillar · CAT®231D · Attachments – Breaker

Finished length1,775 mm

Locate this hose

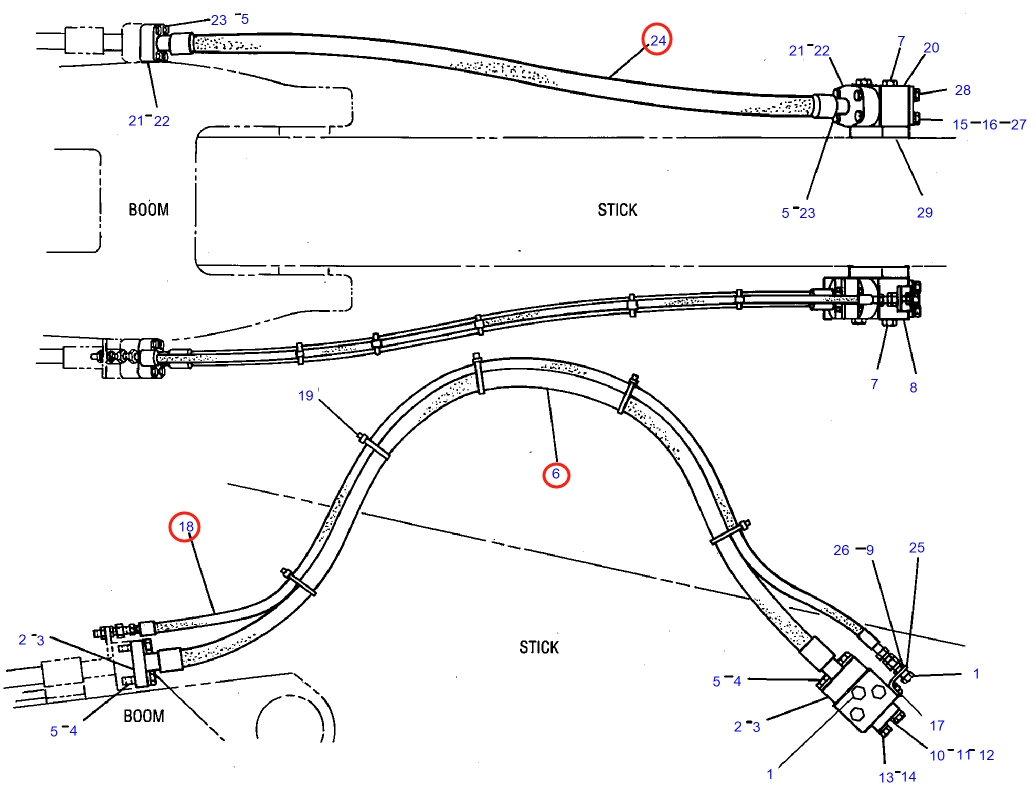

Installation diagram — Pipe No. 18

Locate Pipe No. 18 in the diagram, then confirm part number 6C-0879 before removing the hose.

Caterpillar CAT®231D installation diagram showing hydraulic hose 6C-0879 at Pipe No. 18 — Caterpillar CAT®231DPart 6C-0879 · Pipe No. 18Open full-size diagram

Repair specifications

Part number: 6C-0879
Diagram pipe number: 18
Installation route: 小臂破碎器截止阀右
Hose specification: DN10;4SP-6;28Mpa
Finished length: 1,775 mm
Working pressure: 28 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

For reference only. Confirm the actual hose before fabrication.
