Individual hose record
8U-2131 Hose Repair Specifications
Excavator · Caterpillar · CAT®224B · Attachments – Breaker
Finished length2,347 mm
Locate this hose

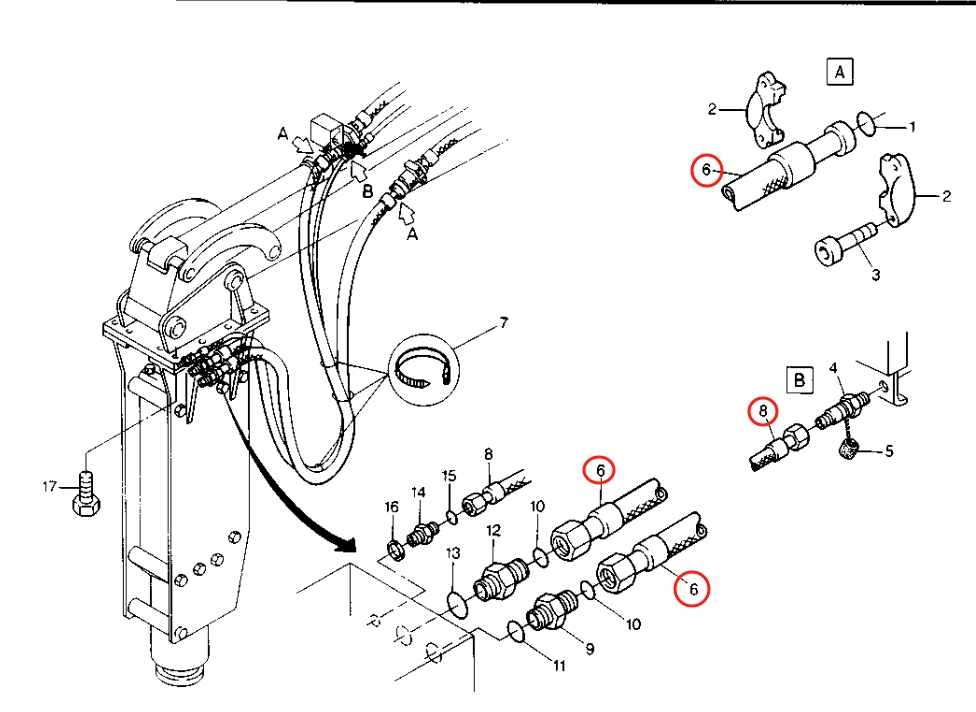

Installation diagram — Pipe No. 8
Locate Pipe No. 8 in the diagram, then confirm part number 8U-2131 before removing the hose.
Repair specifications
- Part number
- 8U-2131
- Diagram pipe number
- 8
- Installation route
- 大臂(破碎器)~破碎器
- Hose specification
- DN6;2SN-4;40Mpa
- Finished length
- 2,347 mm
- Working pressure
- 40 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
Same system
Related Hoses
- Length
- 2,350 mm
- Specification
- DN25;4SP-16;28Mpa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Length
- 1,196 mm
- Specification
- DN25;4SP-16;28Mpa
- Left fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Right fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
For reference only. Confirm the actual hose before fabrication.
