Individual hose record
167352A1 Hose Repair Specifications
Excavator · Case · CX800 · Swivel Joint
Finished length2,500 mm
Locate this hose

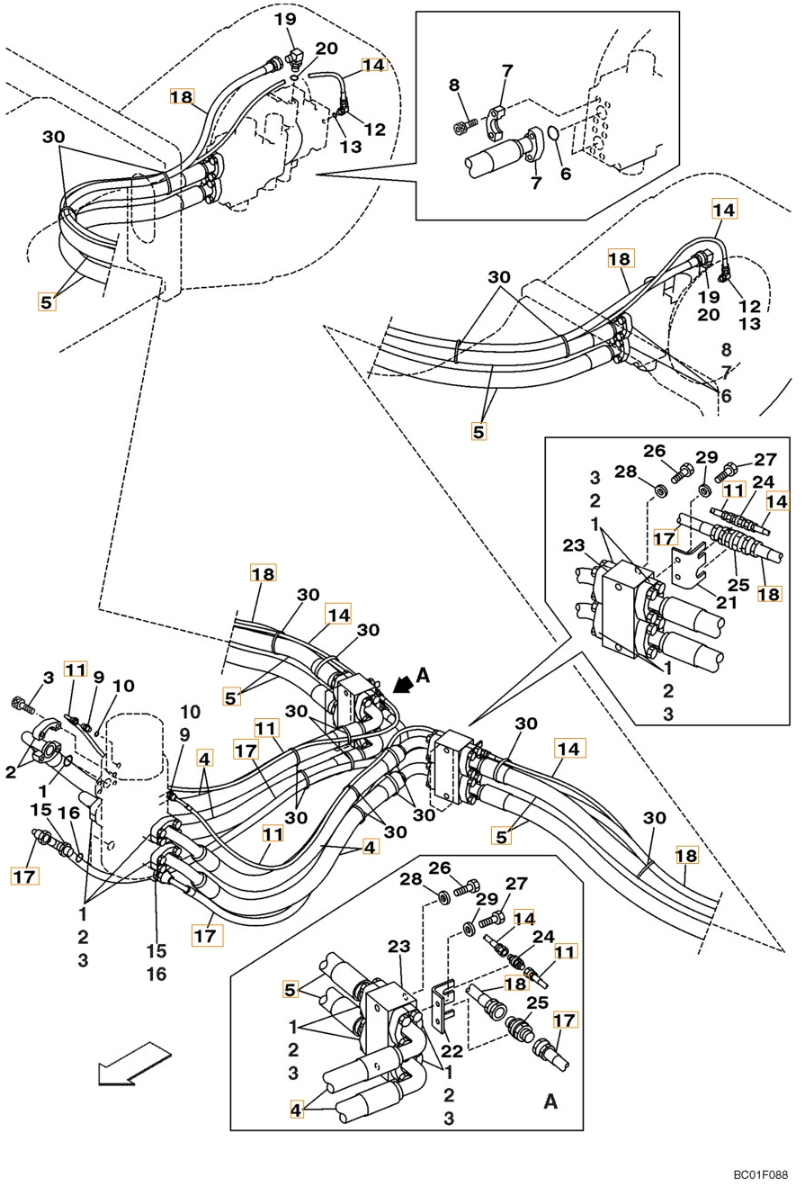

Installation diagram — Pipe No. 14
Locate Pipe No. 14 in the diagram, then confirm part number 167352A1 before removing the hose.
Repair specifications
- Part number
- 167352A1
- Diagram pipe number
- 14
- Installation route
- 接头(回转接头)~行走马达
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 2,500 mm
- Working pressure
- 22.5 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
- Quantity
- 2
For reference only. Confirm the actual hose before fabrication.
