388-0110 Hose Repair Specifications

Excavator · Caterpillar · CAT®314F CR · Attachments – Quick Coupler

Finished length550 mm

Locate this hose

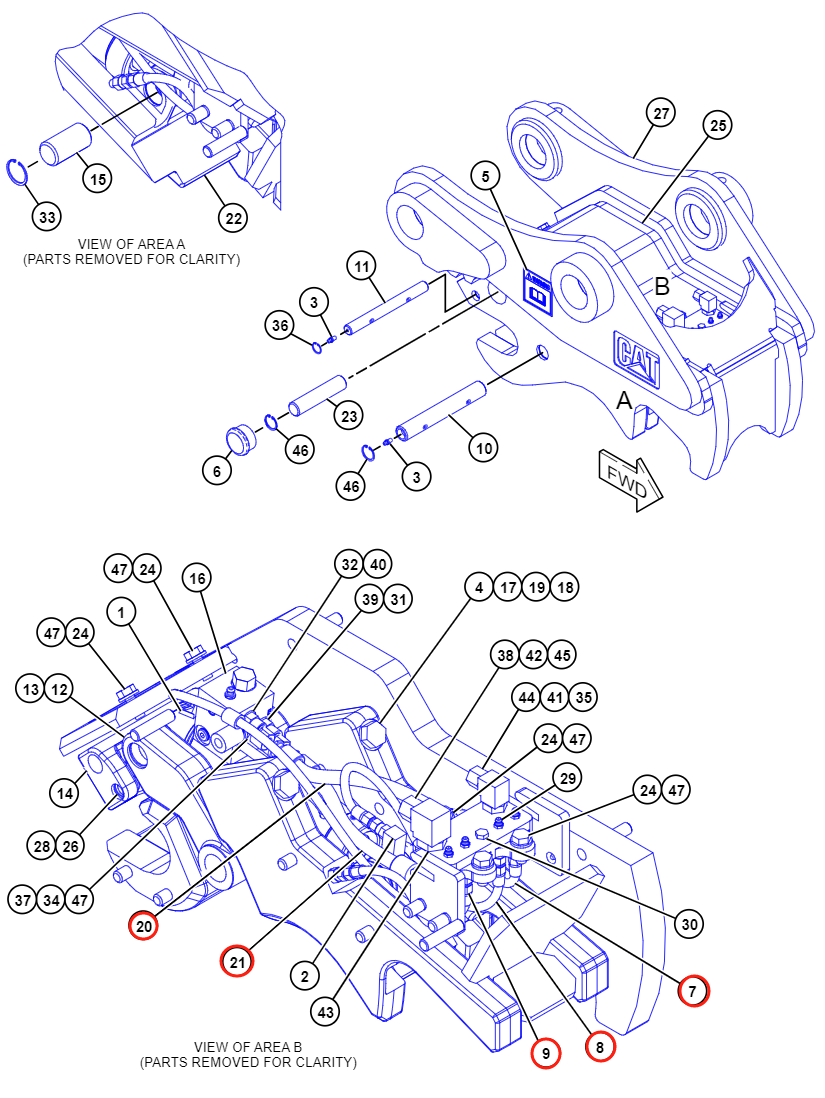

Installation diagram — Pipe No. 9

Locate Pipe No. 9 in the diagram, then confirm part number 388-0110 before removing the hose.

Caterpillar CAT®314F CR installation diagram showing hydraulic hose 388-0110 at Pipe No. 9 — Caterpillar CAT®314F CRPart 388-0110 · Pipe No. 9Open full-size diagram

Repair specifications

Part number: 388-0110
Diagram pipe number: 9
Installation route: 快换装置管
Hose specification: DN3;-2;0Mpa
Finished length: 550 mm
Working pressure: 0 MPa
Left fitting: 美制锥形外螺纹30°内锥
Right fitting: 美制锥形外螺纹30°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 7

388-0105

Installation route: 快换装置管

Length: 260 mm
Specification: DN3;-2;0Mpa
Left fitting: 美制锥形外螺纹30°内锥
Right fitting: 美制锥形外螺纹30°内锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
