Individual hose record

087-5857 Hose Repair Specifications

Excavator · Caterpillar · CAT®312-A · Grease Lines

Finished length2,650 mm

Locate this hose

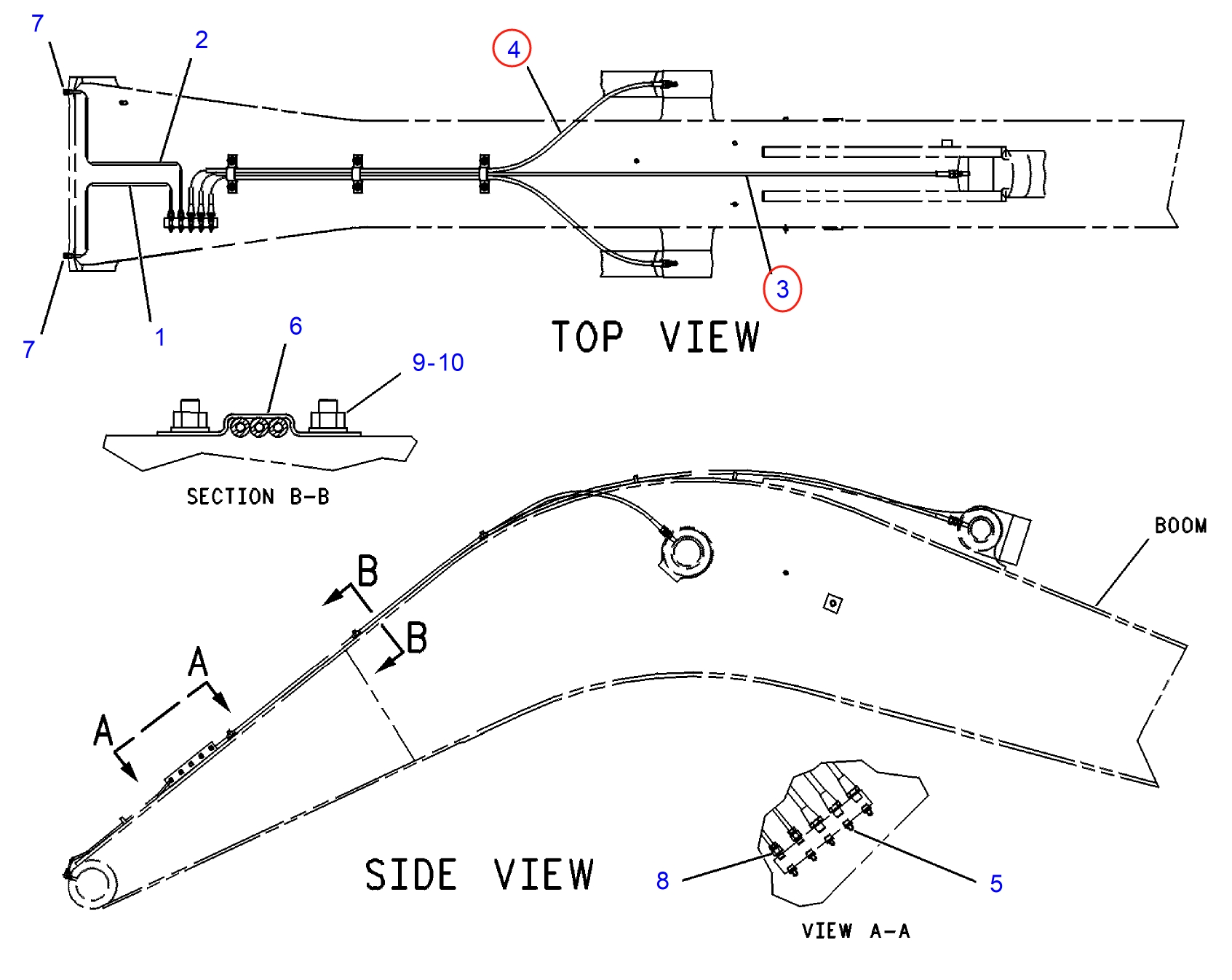

Installation diagram — Pipe No. 3

Locate Pipe No. 3 in the diagram, then confirm part number 087-5857 before removing the hose.

Caterpillar CAT®312-A installation diagram showing hydraulic hose 087-5857 at Pipe No. 3 — Caterpillar CAT®312-APart 087-5857 · Pipe No. 3Open full-size diagram

Repair specifications

Part number: 087-5857
Diagram pipe number: 3
Installation route: Arm-cylinder grease lineOriginal Chinese: 小臂油缸黄油管
Hose specification: DN6;-4;19.2Mpa
Finished length: 2,650 mm
Working pressure: 19.2 MPa
Left fitting: 美制锥形外螺纹30°内锥
Right fitting: 美制锥形外螺纹
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 2

101-2170

Installation route: 小臂销黄油管

Length: 730 mm
Specification: DN6;-4;19.2Mpa
Left fitting: 美制锥形外螺纹30°内锥
Right fitting: 美制锥形外螺纹

View full repair specifications

Diagram Pipe No. 4

7I-6898

Installation route: 大臂油缸黄油管

Length: 2,100 mm
Specification: DN6;-4;19.2Mpa
Left fitting: 美制锥形外螺纹30°内锥
Right fitting: 美制锥形外螺纹

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
