Individual hose record
187-5629 Hose Repair Specifications
Excavator · Caterpillar · CAT®311C · Hydraulic Pump
Finished length2,200 mm
Locate this hose

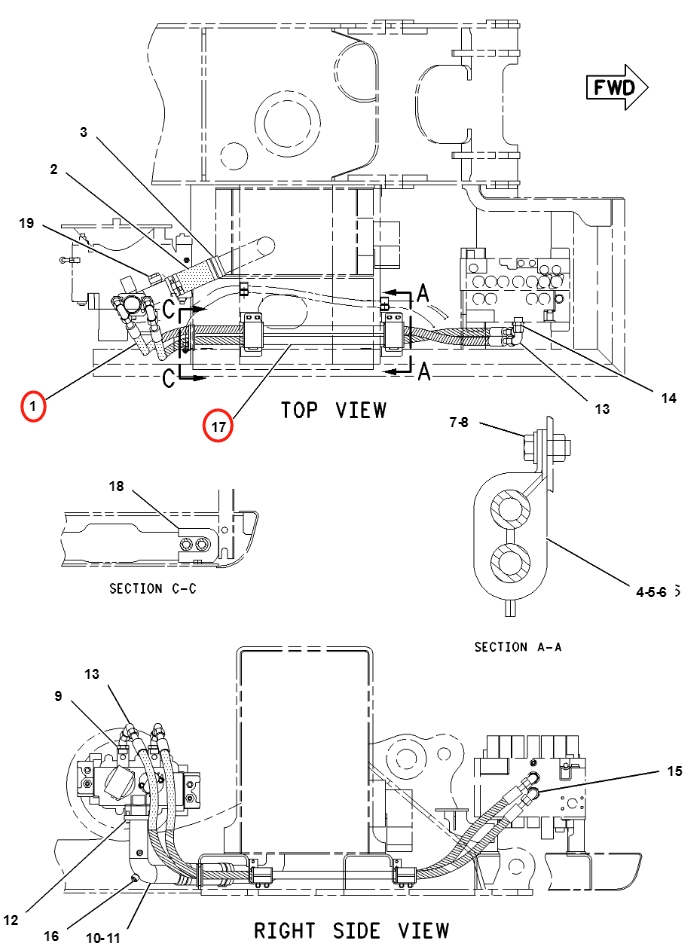

Installation diagram — Pipe No. 1
Locate Pipe No. 1 in the diagram, then confirm part number 187-5629 before removing the hose.
Repair specifications
- Part number
- 187-5629
- Diagram pipe number
- 1
- Installation route
- 液压泵上~分配阀右
- Hose specification
- DN19;6SH-12;42Mpa
- Finished length
- 2,200 mm
- Working pressure
- 42 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
Same system
Related Hoses
For reference only. Confirm the actual hose before fabrication.
