Individual hose record

DS2040643 Hose Preview

Excavator · Doosan · DX140LCR · Boom Assembly

Finished length720 mm

Repair specifications

Part number: DS2040643
Diagram pipe number: 10
Installation route: Arm cylinder — leftOriginal Chinese: 小臂油缸左
Hose specification: DN19;4SH-12;42MPa
Finished length: 720 mm
Working pressure: 42 MPa
Left fitting: Light-series flangeOriginal Chinese: 法兰-轻型
Right fitting: 90° light-series flangeOriginal Chinese: 90°法兰-轻型
Quantity: 1

Manual diagrams

Installation and Exploded Views

A red marker identifies a reviewed hose location.

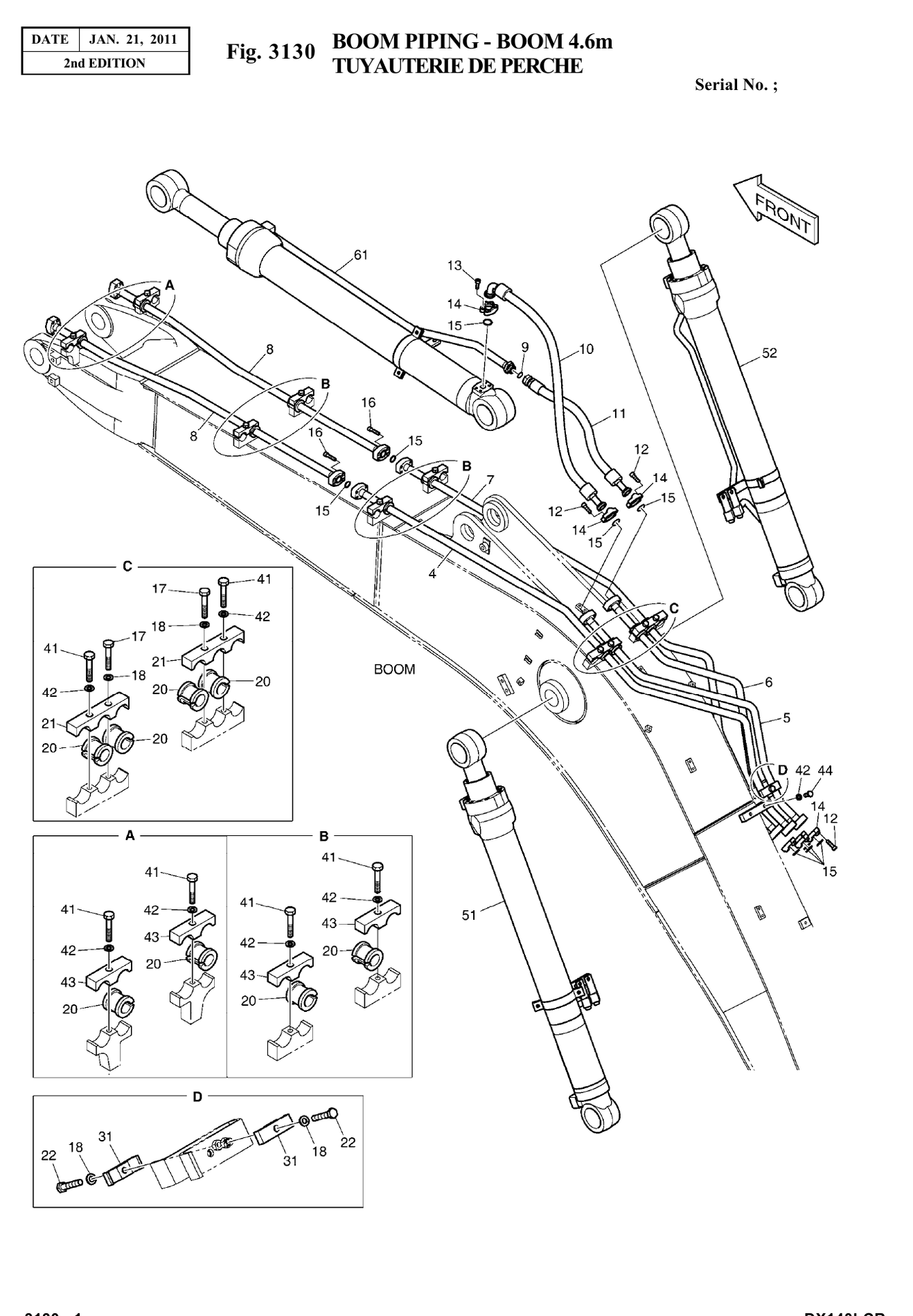

Installation diagram — Installation diagramUse this diagram to help identify the hose. Confirm the exact position and pipe number on the machine.Doosan DX140LCR Excavator Parts ManualManual page 336 · Printed page 3130-1 · Fig. 3130View full-size

For reference only. Confirm the actual hose before fabrication.
