Individual hose record

8V-6563 Hose Repair Specifications

Excavator · Caterpillar · CAT®235C · Boom Assembly

Finished length2,025 mm

Locate this hose

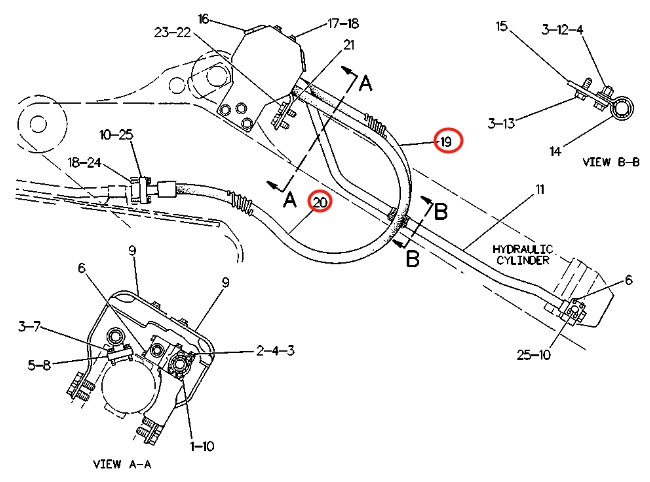

Installation diagram — Pipe No. 19

Locate Pipe No. 19 in the diagram, then confirm part number 8V-6563 before removing the hose.

Caterpillar CAT®235C installation diagram showing hydraulic hose 8V-6563 at Pipe No. 19 — Caterpillar CAT®235CPart 8V-6563 · Pipe No. 19Open full-size diagram

Repair specifications

Part number: 8V-6563
Diagram pipe number: 19
Installation route: 铲斗油缸(规格1)
Hose specification: DN32;4SP-20;35Mpa
Finished length: 2,025 mm
Working pressure: 35 MPa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 34

2V-0577

Installation route: 大臂左1/左2/左3/左4(前段)

Length: 2,464 mm
Specification: DN32;4SP-20;35Mpa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
