Individual hose record
KHJ2369 Hose Repair Specifications
Excavator · Case · CX210C-8 · Solenoid Valve
Finished length2,250 mm
Locate this hose

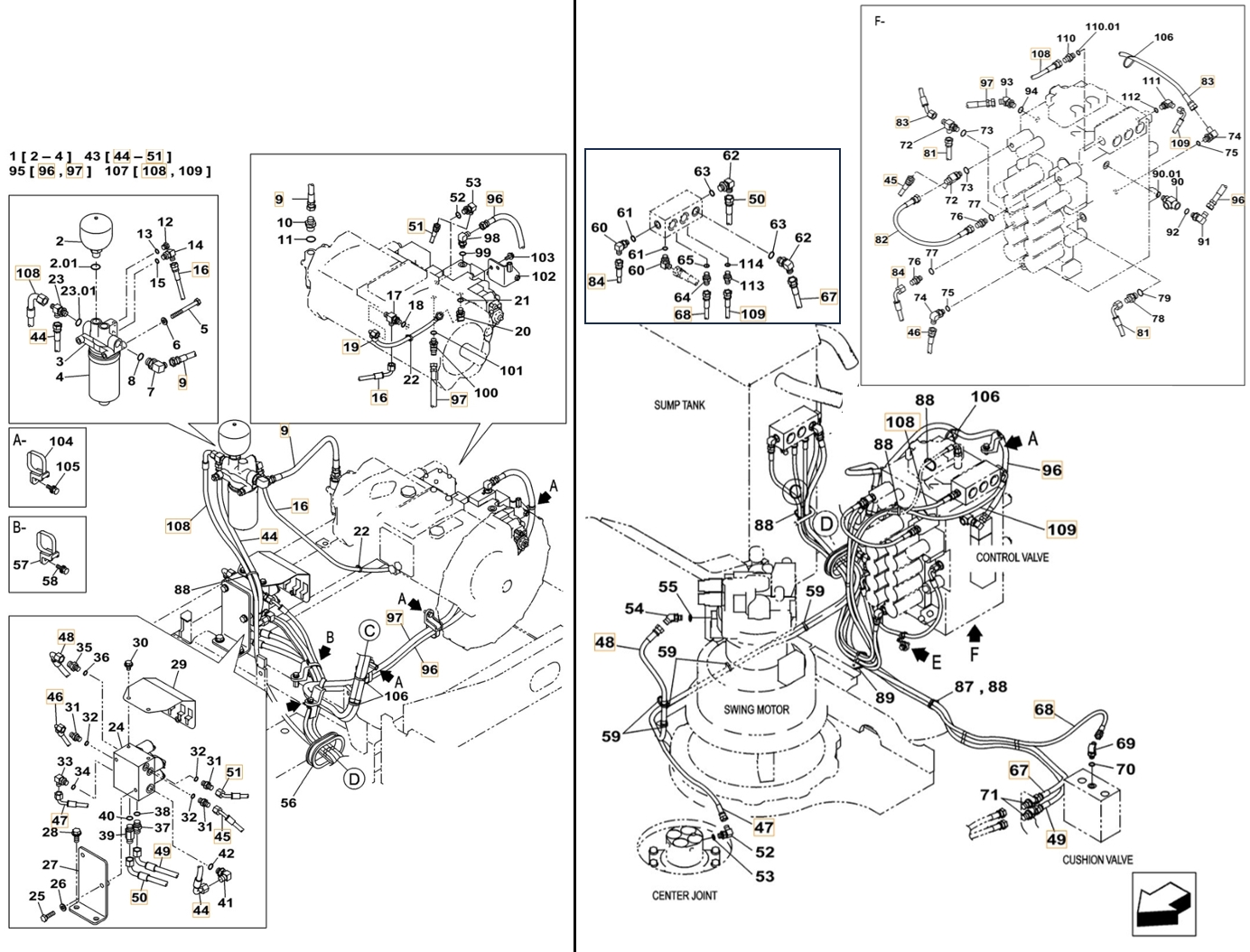

Installation diagram — Pipe No. 49
Locate Pipe No. 49 in the diagram, then confirm part number KHJ2369 before removing the hose.
Repair specifications
- Part number
- KHJ2369
- Diagram pipe number
- 49
- Installation route
- 电磁阀~接头(进回油阀)
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 2,250 mm
- Working pressure
- 18 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
- Quantity
- 1
For reference only. Confirm the actual hose before fabrication.
