F060458 Hydraulic Hose Specifications
Forestry Machine · John Deere · 1210G Forwarder
Total length450 mm

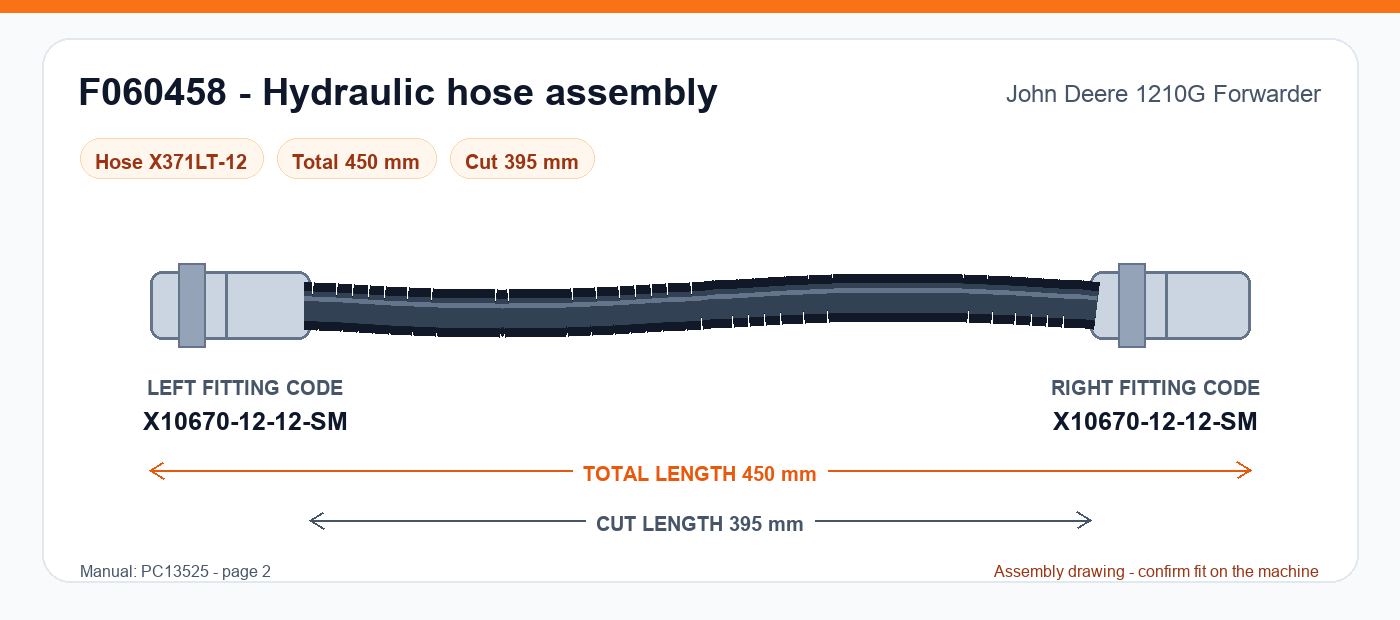

Hose drawing
Hose assembly drawing
Check the total length and both fitting codes before fabrication.
Repair measurements
These text values can be translated and copied. Confirm them against the machine before fabrication.
- Machine
- John Deere 1210G Forwarder
- Part number
- F060458
- Hose type
- X371LT-12
- Total length
- 450 mm
- Cut length
- 395 mm
- Left-end hydraulic fitting code
- X10670-12-12-SMJIC 37° female swivel straight · 1-1/16-12 UNF · 3/4 inch / DN20 hoseSee fitting details
- Right-end hydraulic fitting code
- X10670-12-12-SMJIC 37° female swivel straight · 1-1/16-12 UNF · 3/4 inch / DN20 hoseSee fitting details
- Manual reference
- PC13525, page 2
Hose assembly details
- Part number
- F060458
- Hose type
- X371LT-12
- Total length
- 450 mm
- Cut length
- 395 mm
- Left fitting code
- X10670-12-12-SM
- Right fitting code
- X10670-12-12-SM
- Application
- 1210G Forwarder: Stage V, Rotating and Leveling Cabin Gen II, Grey
- Manual page
- 2
