Individual hose record

4I-6233 Hose Repair Specifications

Excavator · Caterpillar · CAT®315B L · Attachments

Finished length2,650 mm

Locate this hose

Installation diagram — Pipe No. 7

Locate Pipe No. 7 in the diagram, then confirm part number 4I-6233 before removing the hose.

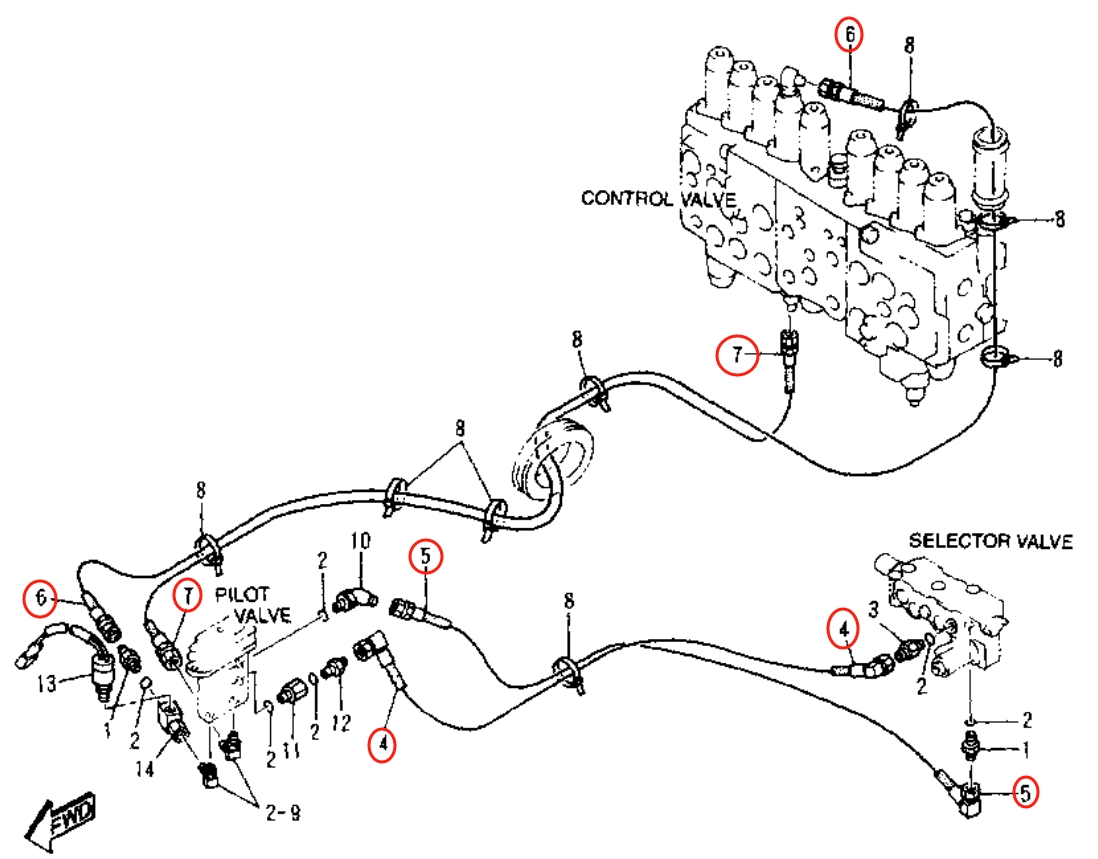

Caterpillar CAT®315B L installation diagram showing hydraulic hose 4I-6233 at Pipe No. 7 — Caterpillar CAT®315B LPart 4I-6233 · Pipe No. 7Open full-size diagram

Repair specifications

Part number: 4I-6233
Diagram pipe number: 7
Installation route: 踏板(附加装置)~分配阀下右
Hose specification: DN10;-6;10.3Mpa
Finished length: 2,650 mm
Working pressure: 10.3 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 13

142-1107

Installation route: 踏板(附加装置)~手动阀(分配阀前)

Length: 3,550 mm
Specification: DN10;-6;10.3Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 5

142-1113

Installation route: 手动阀(分配阀前)~过渡阀块(分配阀前)

Length: 370 mm
Specification: DN10;-6;10.3Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
