Individual hose record

212-5506 Hose Repair Specifications

Excavator · Caterpillar · CAT®318F · Attachments – Lock Valve

Finished length1,480 mm

Locate this hose

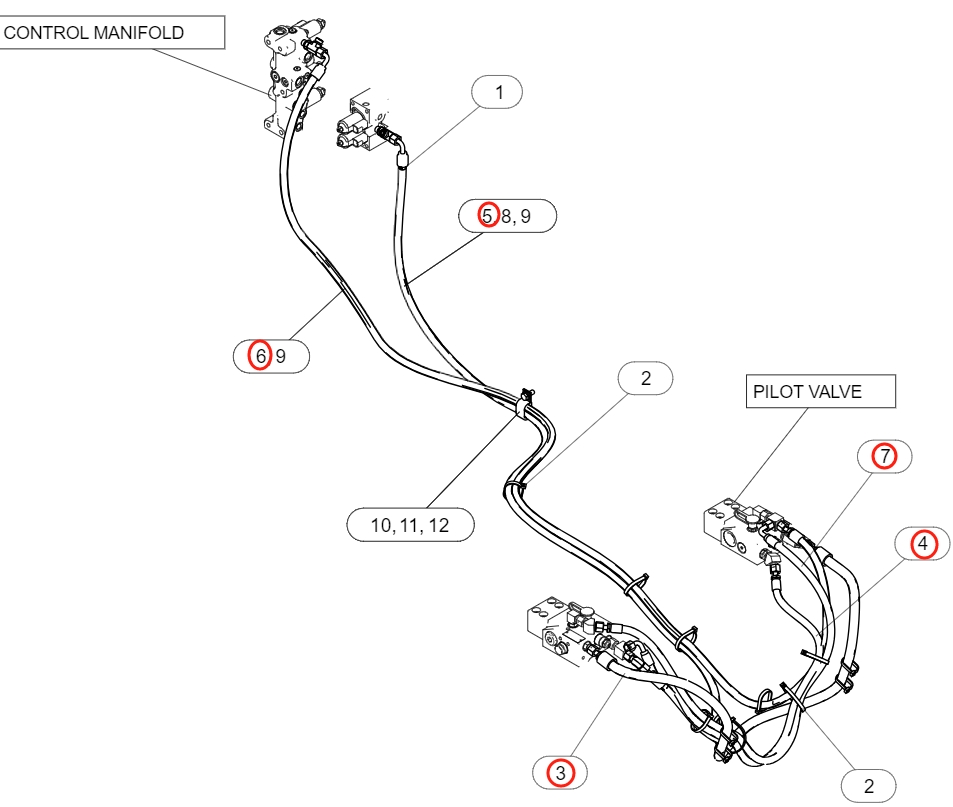

Installation diagram — Pipe No. 3

Locate Pipe No. 3 in the diagram, then confirm part number 212-5506 before removing the hose.

Part number: 212-5506
Diagram pipe number: 3
Installation route: 左大臂油缸锁止阀~右大臂油缸接头(锁止阀)
Hose specification: DN10;6SH-6;42Mpa
Finished length: 1,480 mm
Working pressure: 42 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 4

Installation route: 大臂(锁止阀)~蓄能器电磁阀(分配阀左)

Length: 2,350 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 1

Installation route: 小臂油缸锁止阀

Length: 1,220 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 3

Installation route: 大臂(锁止阀)~蓄能器电磁阀(分配阀左)

Length: 2,200 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 8

Installation route: 大臂油缸锁止阀~分配阀前

Length: 2,720 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 2

Installation route: 小臂油缸锁止阀

Length: 3,400 mm
Specification: DN10;-6;10.3Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 4

Installation route: Left boom-cylinder lock valve → right boom-cylinder lock valveOriginal Chinese: 左大臂油缸锁止阀~右大臂油缸锁止阀

Length: 1,480 mm
Specification: DN10;6SH-6;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
