5S-9368 Hose Repair Specifications

Excavator · Caterpillar · CAT®225D · Hydraulic Pump

Finished length1,335 mm

Locate this hose

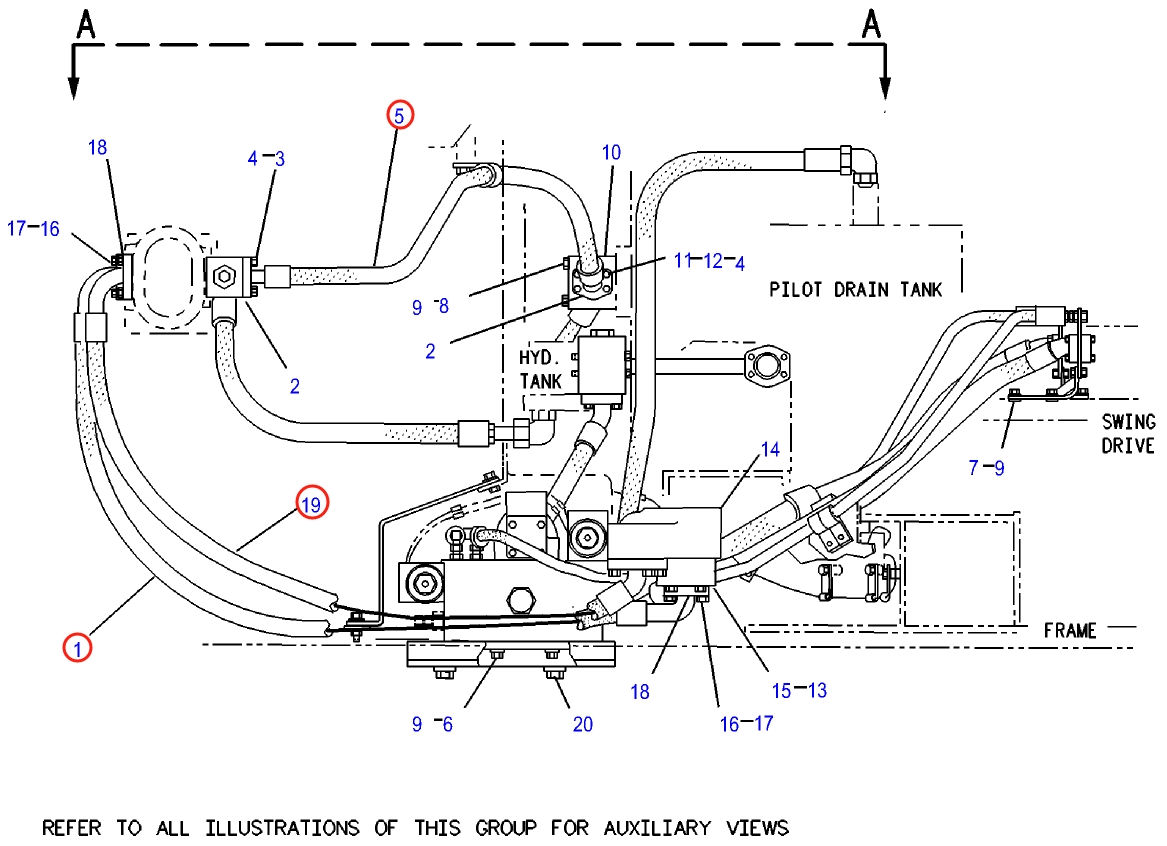

Installation diagram — Pipe No. 5

Locate Pipe No. 5 in the diagram, then confirm part number 5S-9368 before removing the hose.

Caterpillar CAT®225D installation diagram showing hydraulic hose 5S-9368 at Pipe No. 5 — Caterpillar CAT®225DPart 5S-9368 · Pipe No. 5Open full-size diagram

Repair specifications

Part number: 5S-9368
Diagram pipe number: 5
Installation route: 先导泵~法兰板(液压油箱左)
Hose specification: DN25;4SP-16;28Mpa
Finished length: 1,335 mm
Working pressure: 28 MPa
Left fitting: Light-series flangeOriginal Chinese: 法兰-轻型
Right fitting: Light-series flangeOriginal Chinese: 法兰-轻型
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 8

6W-4640

Installation route: 液压泵~液压油过滤器

Length: 794 mm
Specification: DN19;1SN-12;8.7Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 14

6W-6303

Installation route: 先导泵~液压油箱

Length: 1,450 mm
Specification: DN25;4SP-16;28Mpa
Left fitting: Light-series flangeOriginal Chinese: 法兰-轻型
Right fitting: Light-series flangeOriginal Chinese: 法兰-轻型

View full repair specifications

Diagram Pipe No. 5

5S-9348

Installation route: 先导泵~法兰板(液压油箱左)

Length: 1,385 mm
Specification: DN25;4SP-16;28Mpa
Left fitting: Light-series flangeOriginal Chinese: 法兰-轻型
Right fitting: Light-series flangeOriginal Chinese: 法兰-轻型

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
