4I-1419 Hose Repair Specifications

Excavator · Caterpillar · CAT®311B · Control Lever

Finished length2,360 mm

Locate this hose

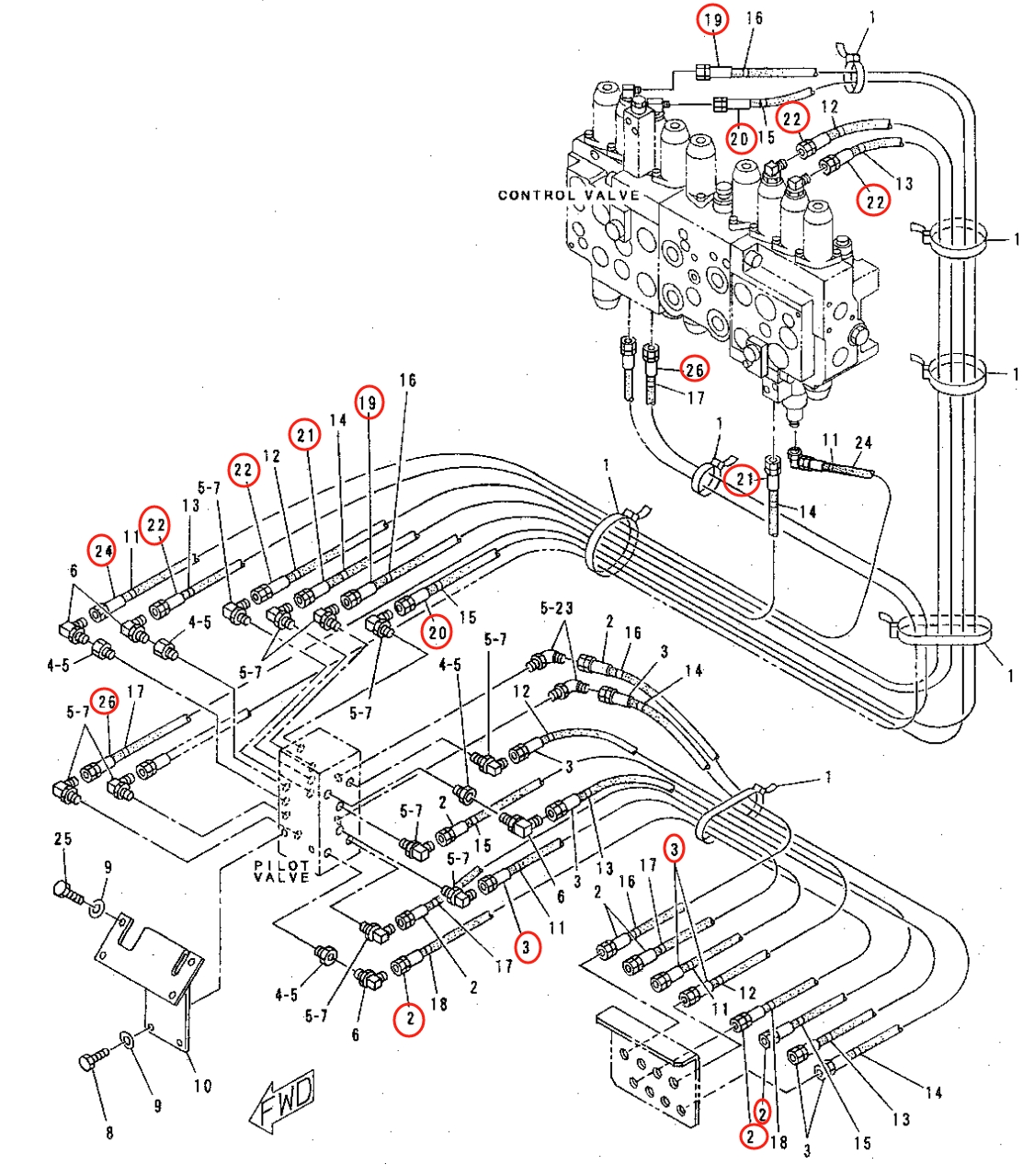

Installation diagram — Pipe No. 19

Locate Pipe No. 19 in the diagram, then confirm part number 4I-1419 before removing the hose.

Caterpillar CAT®311B installation diagram showing hydraulic hose 4I-1419 at Pipe No. 19 — Caterpillar CAT®311BPart 4I-1419 · Pipe No. 19Open full-size diagram

Repair specifications

Part number: 4I-1419
Diagram pipe number: 19
Installation route: 后中转接头~分配阀上
Hose specification: DN10;-6;10.3Mpa
Finished length: 2,360 mm
Working pressure: 10.3 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 2

7I-0187

Installation route: 前中转接头~后中转接头

Length: 1,050 mm
Specification: DN10;-6;10.3Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 21

4I-1410

Installation route: 后中转接头~分配阀下

Length: 1,590 mm
Specification: DN10;-6;10.3Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
