Individual hose record

730501002121 Hose Repair Specifications

Excavator · Sunward · SWE235E-3H · Boom Assembly

Finished length1,250 mm

Locate this hose

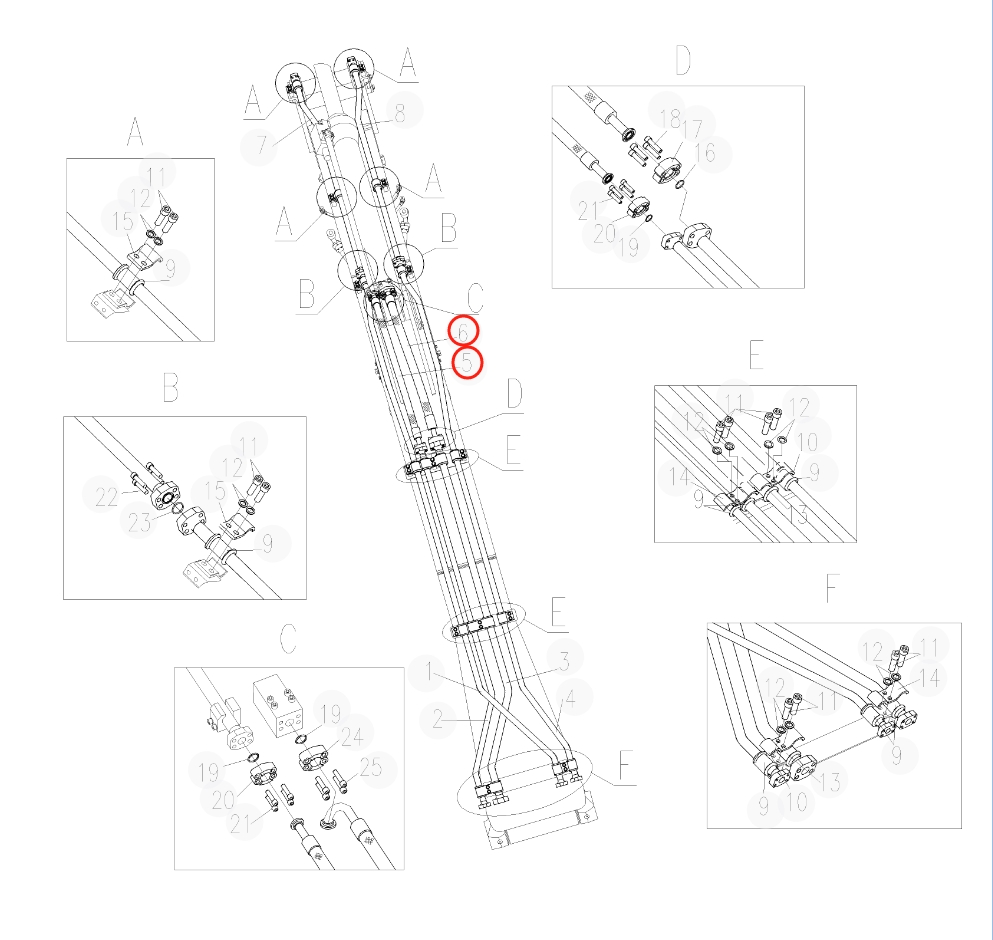

Installation diagram — Pipe No. 5

Locate Pipe No. 5 in the diagram, then confirm part number 730501002121 before removing the hose.

Sunward SWE235E-3H installation diagram showing hydraulic hose 730501002121 at Pipe No. 5
Sunward SWE235E-3HPart 730501002121 · Pipe No. 5Open full-size diagram

Repair specifications

Part number
730501002121
Diagram pipe number
5
Installation route
Arm cylinder — leftOriginal Chinese: 小臂油缸左
Hose specification
DN25;6SH-16;35MPa
Finished length
1,250 mm
Working pressure
35 MPa
Left fitting
Light-series flangeOriginal Chinese: 法兰-轻型
Right fitting
Light-series flangeOriginal Chinese: 法兰-轻型
Quantity
1

Same system

Related Hoses

Diagram Pipe No. 6

730501003078

Installation route: Arm cylinder — rightOriginal Chinese: 小臂油缸右

Length
1,275 mm
Specification
DN32;6SH-20;35MPa
Left fitting
90° heavy-series flangeOriginal Chinese: 90°法兰-重型
Right fitting
Heavy-series flangeOriginal Chinese: 法兰-重型
View full repair specifications

Optional cross-check

Ask an AI search tool to check this repair data

The question is already written for this machine or hose. Use a tool with web search enabled; treat its answer as a starting point and verify on the machine.

ChatGPT Perplexity Claude Google AI Mode
See the exact question being sent
I am checking hydraulic hose repair information for "730501002121 Hose Repair Specifications". Use web search and cite a source for every factual point. Compare this HoseSeek page with manufacturer manuals and reliable parts documentation: https://www.hoseseek.com/hoses/hose_65e0ae6214bb53eedc40a14c/
HoseSeek currently shows: part number: 730501002121; diagram pipe number: 5; installation route: Arm cylinder — left; hose specification: DN25;6SH-16;35MPa; finished length in millimetres: 1250; left fitting: Light-series flange; right fitting: Light-series flange.

Verify, where applicable:
1. Exact machine model and any serial-number range.
2. Hydraulic system and installation route.
3. Hose part number and diagram pipe number.
4. Finished length, hose specification, and pressure rating.
5. Both end fittings, including thread, sealing seat, size, and angle.
6. Installation-diagram position and routing.

State explicitly what you could not verify. Do not infer a missing dimension or fitting. End with a short on-machine checklist for a hose repair technician.

For reference only. Confirm the actual hose before fabrication.
