Individual hose record

730501006677 Hose Repair Specifications

Excavator · Sunward · SWE80F-1A · Pedal

Finished length340 mm

Locate this hose

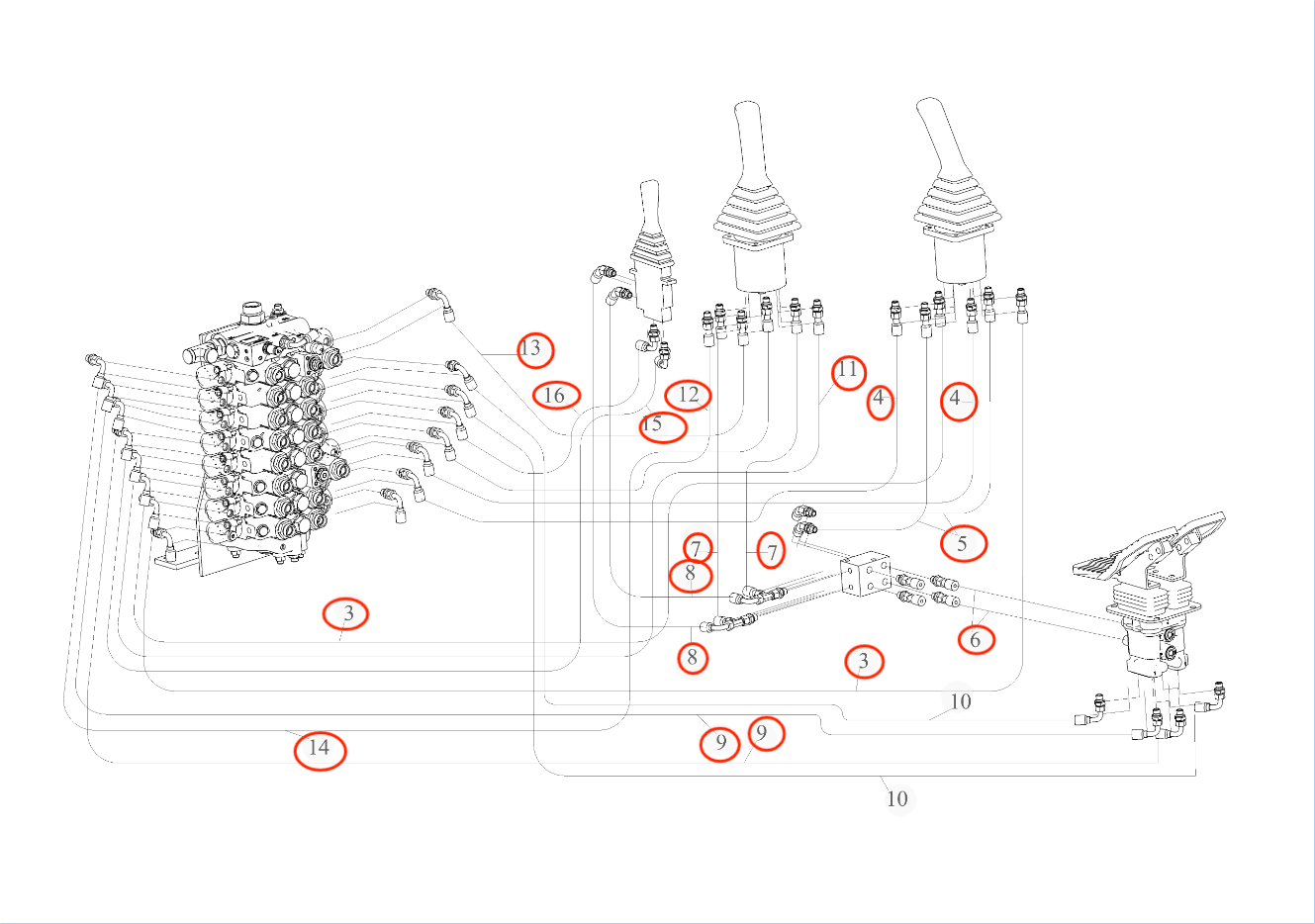

Installation diagram — Pipe No. 6

Locate Pipe No. 6 in the diagram, then confirm part number 730501006677 before removing the hose.

Sunward SWE80F-1A installation diagram showing hydraulic hose 730501006677 at Pipe No. 6 — Sunward SWE80F-1APart 730501006677 · Pipe No. 6Open full-size diagram

Repair specifications

Part number: 730501006677
Diagram pipe number: 6
Installation route: 行走踏板~进回油阀
Hose specification: DN6;2SN-04;34.5MPa
Finished length: 340 mm
Working pressure: 34.5 MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 公制内螺纹24°锥带O形圈-轻型
Quantity: 2

For reference only. Confirm the actual hose before fabrication.
