Individual hose record
4422976 Hose Repair Specifications
Excavator · Hitachi · ZX120 · Hydraulic Pump
Finished length740 mm
Locate this hose

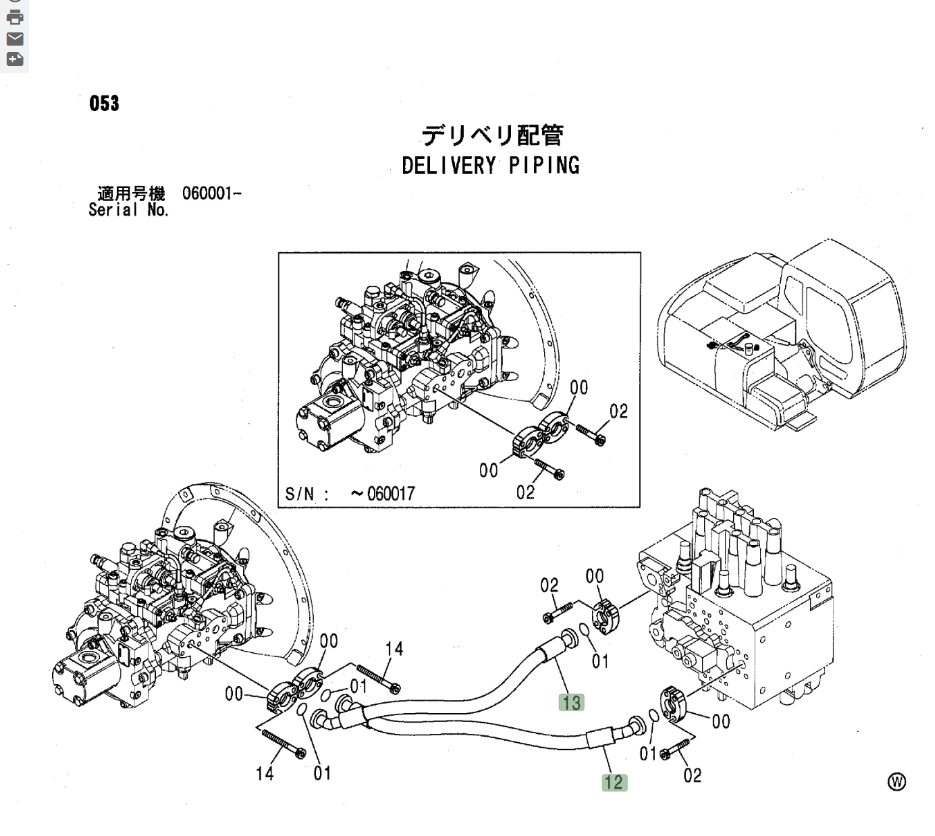

Installation diagram — Pipe No. 12
Locate Pipe No. 12 in the diagram, then confirm part number 4422976 before removing the hose.
Repair specifications
- Part number
- 4422976
- Diagram pipe number
- 12
- Installation route
- 液压泵~分配阀(进油)
- Hose specification
- DN16;4SP-10;38MPa
- Finished length
- 740 mm
- Working pressure
- 38 MPa
- Left fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Right fitting
- 45° heavy-series flangeOriginal Chinese: 45°法兰-重型
- Quantity
- 1
