Individual hose record

141-6246 Hose Repair Specifications

Excavator · Caterpillar · CAT®317-A N · Attachments – Lock Valve

Finished length620 mm

Locate this hose

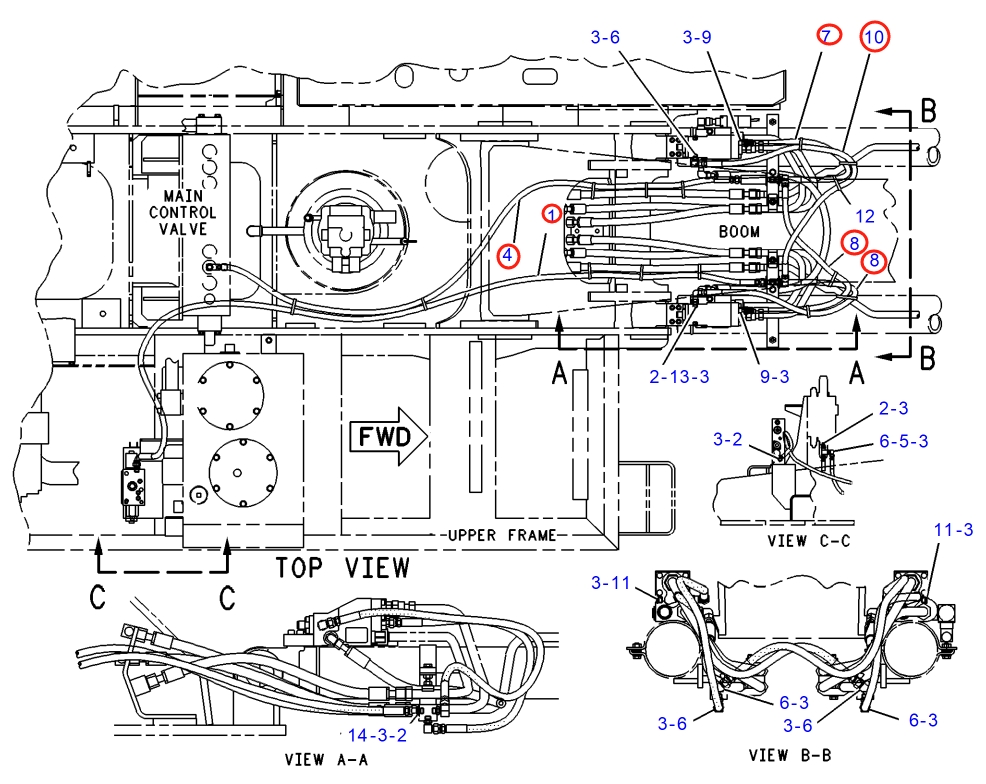

Installation diagram — Pipe No. 7

Locate Pipe No. 7 in the diagram, then confirm part number 141-6246 before removing the hose.

Caterpillar CAT®317-A N installation diagram showing hydraulic hose 141-6246 at Pipe No. 7 — **Caterpillar CAT®317-A N**Part 141-6246 · Pipe No. 7Open full-size diagram

Repair specifications

Part number: 141-6246
Diagram pipe number: 7
Installation route: 左大臂油缸锁止阀~过渡接头(大臂油缸锁止阀)
Hose specification: DN10;1SN-6;15.7Mpa
Finished length: 620 mm
Working pressure: 15.7 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 2

137-4678

Installation route: 小臂油缸锁止阀

Length: 3,600 mm
Specification: DN10;1SN-6;15.7Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 8

141-6245

Installation route: 左大臂油缸锁止阀~过渡接头(大臂油缸锁止阀)

Length: 765 mm
Specification: DN10;1SN-6;15.7Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 10

141-6247

Installation route: Left boom-cylinder lock valve → right boom-cylinder lock valveOriginal Chinese: 左大臂油缸锁止阀~右大臂油缸锁止阀

Length: 910 mm
Specification: DN10;1SN-6;15.7Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 28

6C-6464

Installation route: Left boom-cylinder lock valve → right boom-cylinder lock valveOriginal Chinese: 左大臂油缸锁止阀~右大臂油缸锁止阀

Length: 1,300 mm
Specification: DN10;6SH-6;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 10

103-1434

Installation route: 过渡接头(大臂油缸锁止阀)~分配阀下

Length: 1,200 mm
Specification: DN10;-6;10.3Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 1

137-4679

Installation route: 小臂油缸锁止阀

Length: 3,500 mm
Specification: DN19;1SN-12;8.7Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 1

121-3148

Installation route: 小臂油缸锁止阀

Length: 6,800 mm
Specification: DN19;1SN-12;8.7Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 4

7T-6625

Installation route: 右大臂油缸锁止阀~分配阀前

Length: 2,200 mm
Specification: DN10;1SN-6;15.7Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
