Individual hose record

8U-2679 Hose Repair Specifications

Excavator · Caterpillar · CAT®214B FT · Attachments

Finished length708 mm

Locate this hose

Installation diagram — Pipe No. 8

Locate Pipe No. 8 in the diagram, then confirm part number 8U-2679 before removing the hose.

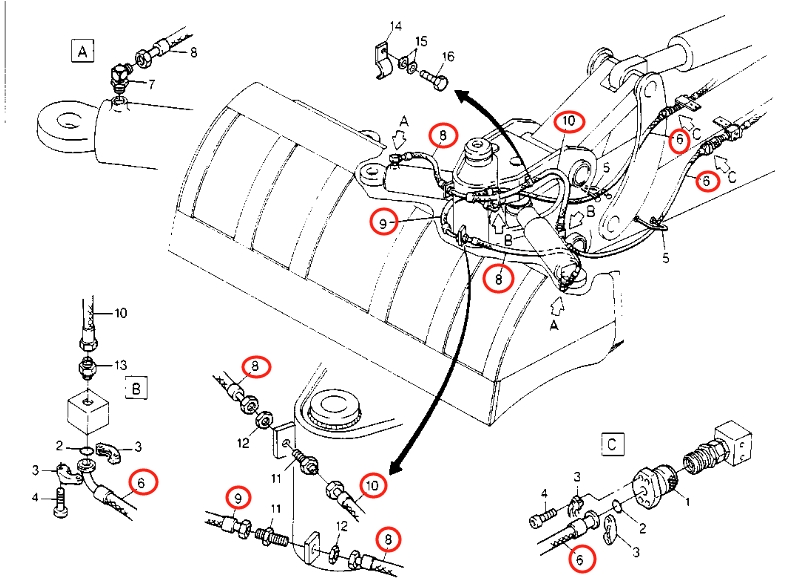

Caterpillar CAT®214B FT installation diagram showing hydraulic hose 8U-2679 at Pipe No. 8 — **Caterpillar CAT®214B FT**Part 8U-2679 · Pipe No. 8Open full-size diagram

Repair specifications

Part number: 8U-2679
Diagram pipe number: 8
Installation route: 铲斗倾斜油缸管路
Hose specification: DN10;6SH-6;42Mpa
Finished length: 708 mm
Working pressure: 42 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 2

Same system

Related Hoses

Diagram Pipe No. 1

8U-0682

Installation route: 大臂铁管~快速断开连接器(小臂)

Length: 1,350 mm
Specification: DN13;6SH-8;42Mpa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型

View full repair specifications

Diagram Pipe No. 8

8U-0350

Installation route: 推土铲手柄~进回油阀

Length: 495 mm
Specification: DN8;-5;17.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 1

8U-1885

Installation route: 大臂铁管~快速断开连接器(小臂)

Length: 2,400 mm
Specification: DN13;6SH-8;42Mpa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型

View full repair specifications

Diagram Pipe No. 1

8U-1887

Installation route: 大臂铁管~快速断开连接器(小臂)

Length: 2,200 mm
Specification: DN13;6SH-8;42Mpa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型

View full repair specifications

Diagram Pipe No. 2

8U-1666

Installation route: 变速箱~后传动轴

Length: 726 mm
Specification: DN8;-5;17.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 6

8U-0109

Installation route: 过渡阀块(驾驶室)~过渡接头

Length: 1,386 mm
Specification: DN10;2SN-6;33Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 23

8U-1942

Installation route: 制动泵~过渡接头(连接制动泵)

Length: 2,604 mm
Specification: DN10;2SN-6;33Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 4

8U-0109

Installation route: 转向泵~过渡接头(连接制动泵)

Length: 1,386 mm
Specification: DN10;2SN-6;33Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
