Individual hose record

033-8744 Hose Repair Specifications

Excavator · Caterpillar · CAT®245D · Control Lever

Finished length914 mm

Locate this hose

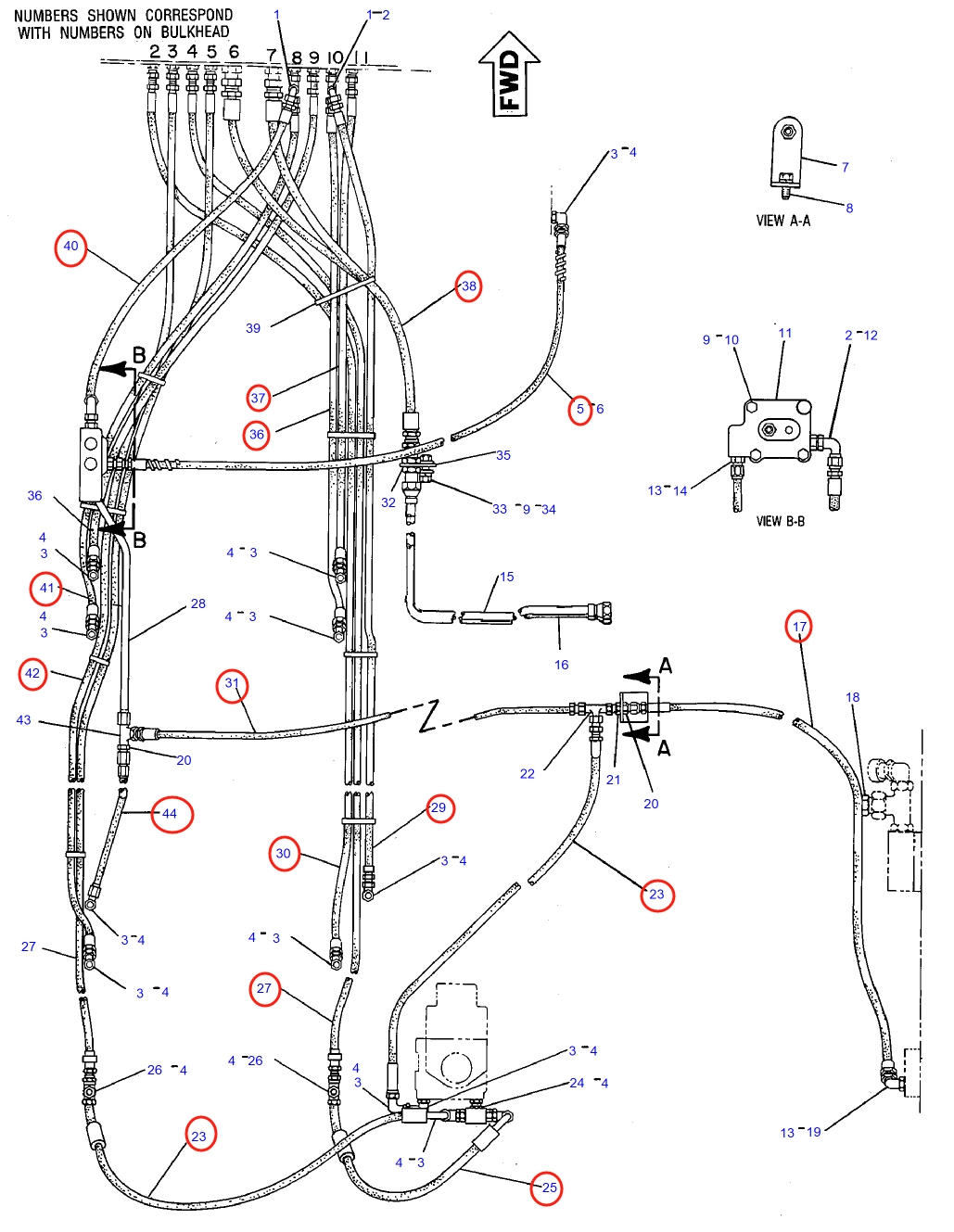

Installation diagram — Pipe No. 38

Locate Pipe No. 38 in the diagram, then confirm part number 033-8744 before removing the hose.

Caterpillar CAT®245D installation diagram showing hydraulic hose 033-8744 at Pipe No. 38 — Caterpillar CAT®245DPart 033-8744 · Pipe No. 38Open full-size diagram

Repair specifications

Part number: 033-8744
Diagram pipe number: 38
Installation route: 中转接头~接头(中转接头后)
Hose specification: DN19;1SN-12;8.7Mpa
Finished length: 914 mm
Working pressure: 8.7 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 2

For reference only. Confirm the actual hose before fabrication.
