Individual hose record
4426474 Hose Repair Specifications
Excavator · Hitachi · EX50UNA · Swing Motor
Finished length1,290 mm
Locate this hose

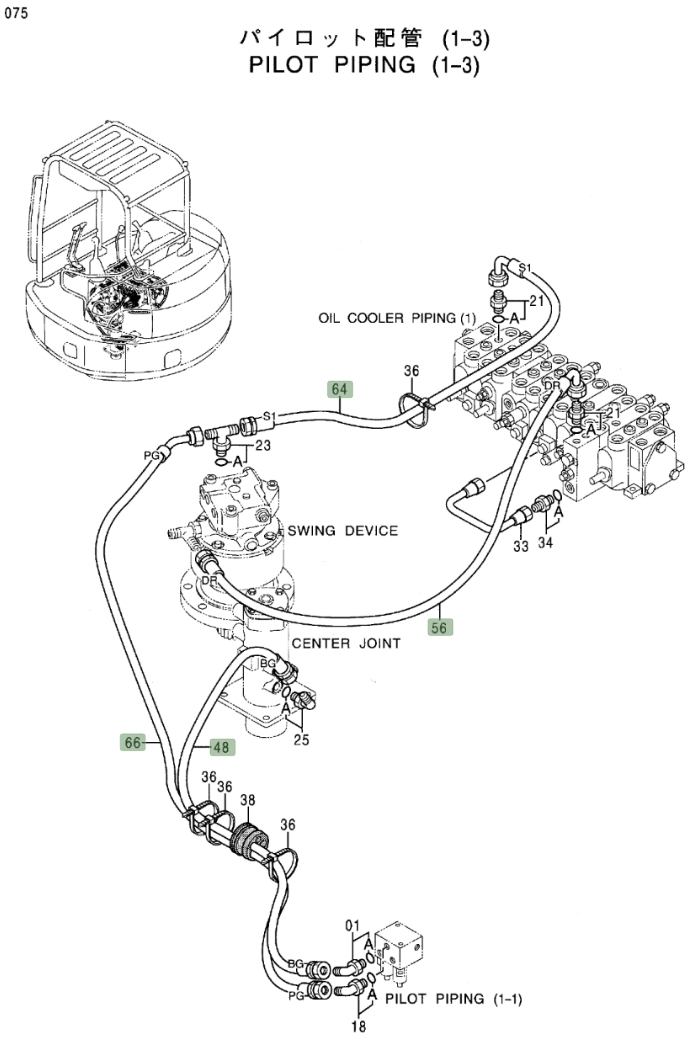

Installation diagram — Pipe No. 66
Locate Pipe No. 66 in the diagram, then confirm part number 4426474 before removing the hose.
Repair specifications
- Part number
- 4426474
- Diagram pipe number
- 66
- Installation route
- 回转马达~电磁阀
- Hose specification
- DN6;1SN-4;7Mpa
- Finished length
- 1,290 mm
- Working pressure
- 7 MPa
- Left fitting
- 英制内螺纹30°外锥
- Right fitting
- 英制内螺纹30°外锥
- Quantity
- 1
For reference only. Confirm the actual hose before fabrication.
