Individual hose record
KHJ2134 Hose Repair Specifications
Excavator · Case · CX240C · Solenoid Valve
Finished length2,250 mm
Locate this hose

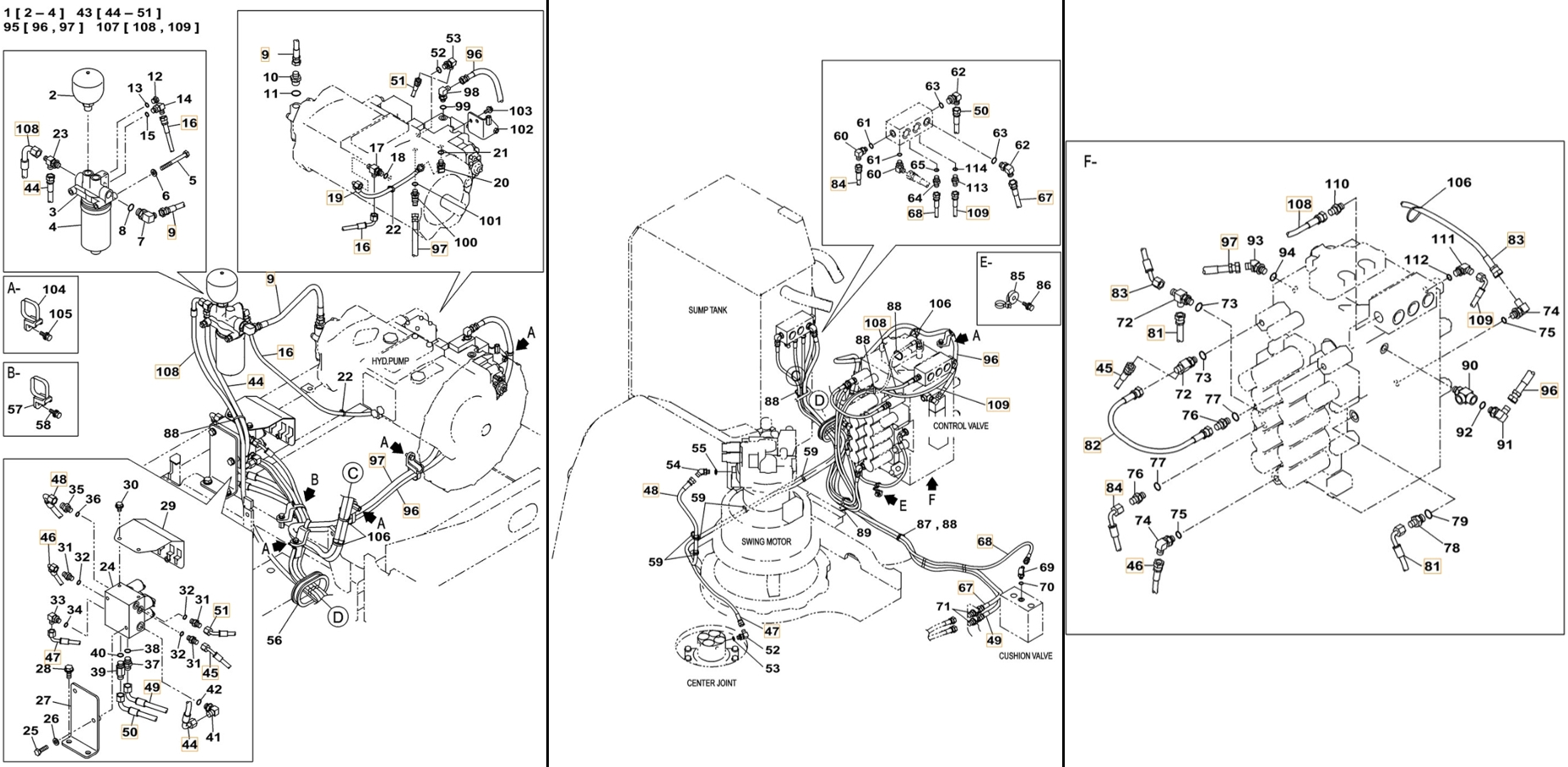

Installation diagram — Pipe No. 109
Locate Pipe No. 109 in the diagram, then confirm part number KHJ2134 before removing the hose.
Repair specifications
- Part number
- KHJ2134
- Diagram pipe number
- 109
- Installation route
- 电磁阀(分配阀)~液压油箱过渡阀块
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 2,250 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 90°英制内螺纹60°内锥
- Right fitting
- 英制内螺纹60°内锥
- Quantity
- 1
