Individual hose record
111-6697 Hose Repair Specifications
Excavator · Caterpillar · CAT®307 · Attachments – Lock Valve
Finished length1,251 mm
Locate this hose

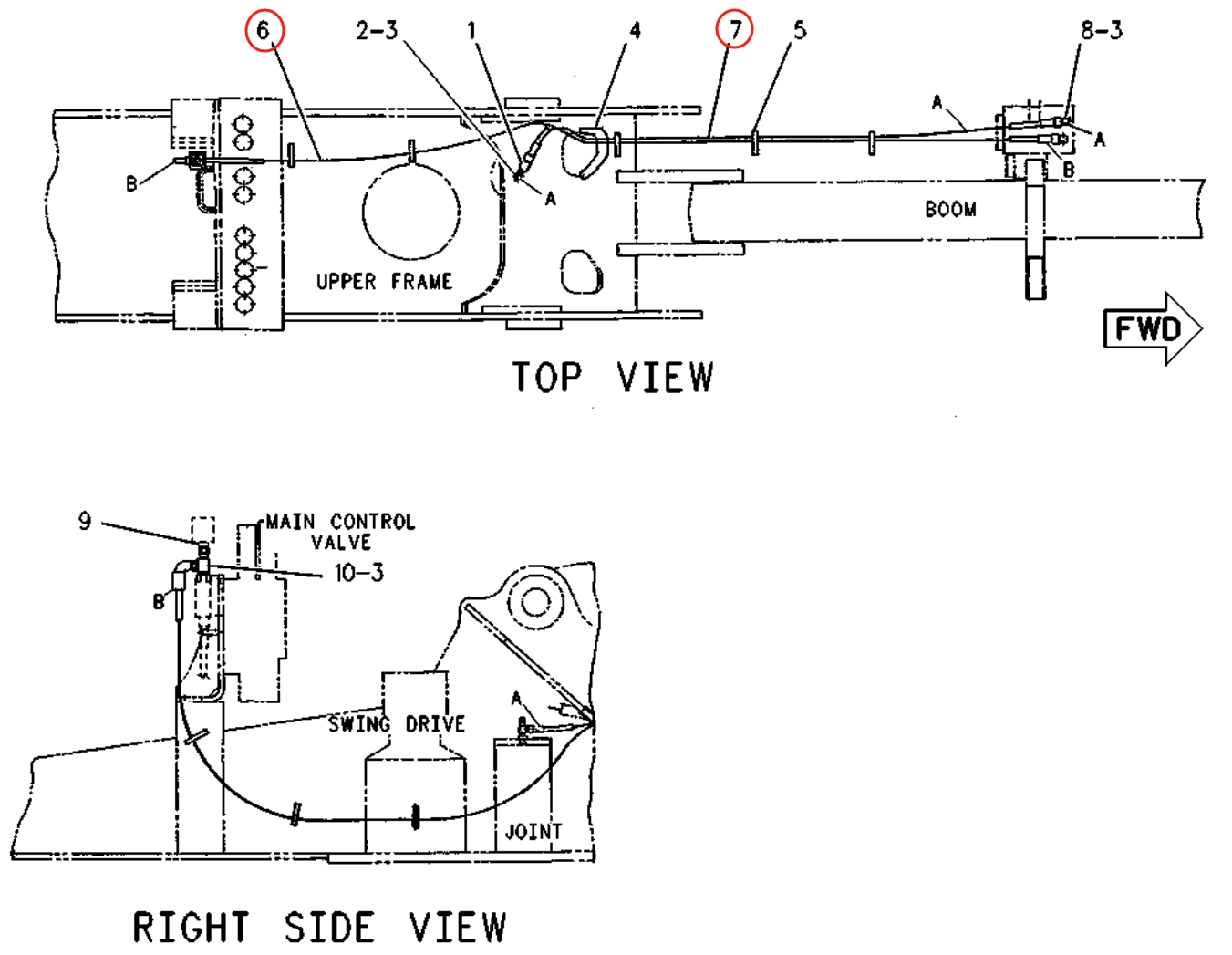

Installation diagram — Pipe No. 7
Locate Pipe No. 7 in the diagram, then confirm part number 111-6697 before removing the hose.
Repair specifications
- Part number
- 111-6697
- Diagram pipe number
- 7
- Installation route
- 大臂油缸锁止阀~回转接头
- Hose specification
- DN6;1SN-4;19.2Mpa
- Finished length
- 1,251 mm
- Working pressure
- 19.2 MPa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Quantity
- 1
For reference only. Confirm the actual hose before fabrication.
