Individual hose record

4I-1404 Hose Repair Specifications

Excavator · Caterpillar · CAT®312B L · Solenoid Valve

Finished length500 mm

Locate this hose

Installation diagram — Pipe No. 1

Locate Pipe No. 1 in the diagram, then confirm part number 4I-1404 before removing the hose.

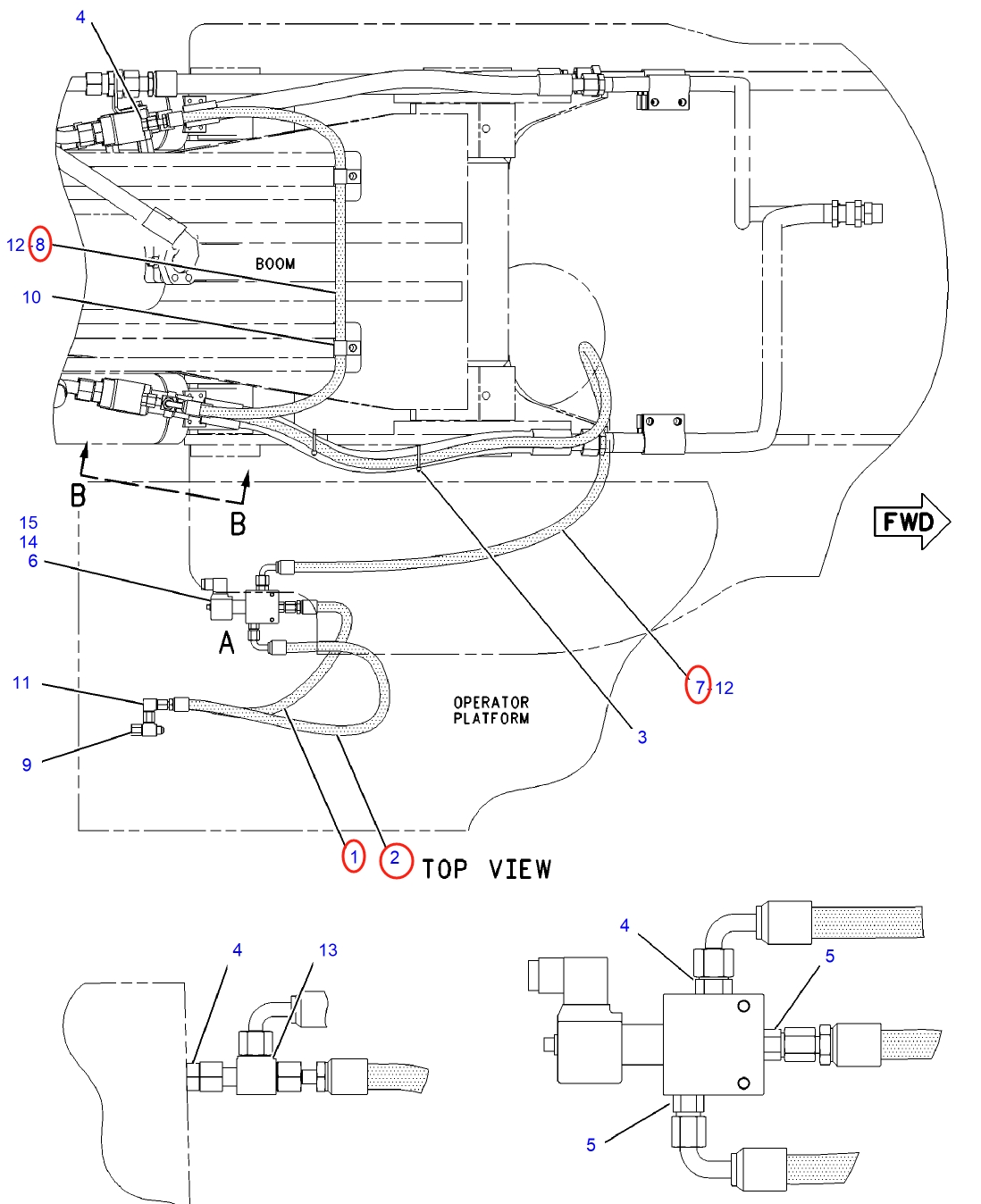

Caterpillar CAT®312B L installation diagram showing hydraulic hose 4I-1404 at Pipe No. 1 — Caterpillar CAT®312B LPart 4I-1404 · Pipe No. 1Open full-size diagram

Repair specifications

Part number: 4I-1404
Diagram pipe number: 1
Installation route: 电磁阀(驾驶室)~驾驶室
Hose specification: DN10;-6;10.3Mpa
Finished length: 500 mm
Working pressure: 10.3 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 2

7I-0178

Installation route: 蓄能器电磁阀(液压油箱后)~进回油阀

Length: 3,200 mm
Specification: DN10;-6;10.3Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
