Individual hose record

4188920 Hose Repair Specifications

Excavator · Hitachi · ZX160LC · Attachments – Breaker

Finished length800 mm

Locate this hose

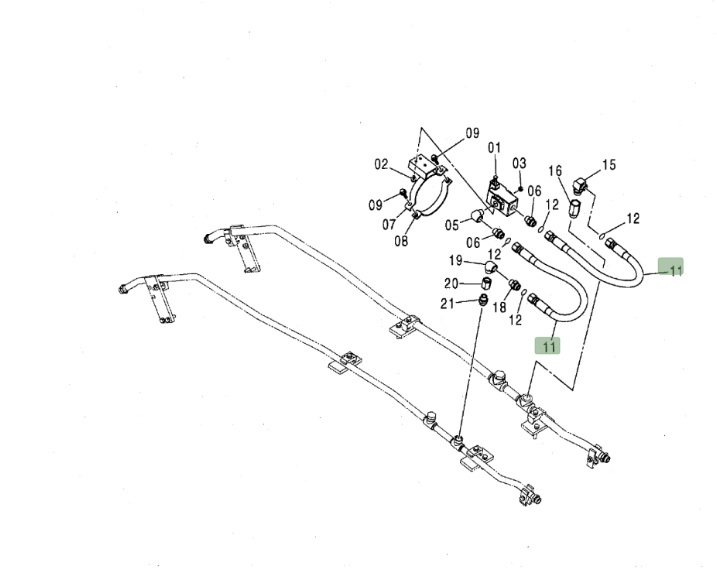

Installation diagram — Pipe No. 11

Locate Pipe No. 11 in the diagram, then confirm part number 4188920 before removing the hose.

Hitachi ZX160LC installation diagram showing hydraulic hose 4188920 at Pipe No. 11 — **Hitachi ZX160LC**Part 4188920 · Pipe No. 11Open full-size diagram

Repair specifications

Part number: 4188920
Diagram pipe number: 11
Installation route: 大臂(后段)~卸压安全阀(破碎器)
Hose specification: DN19;4SP-12;38Mpa
Finished length: 800 mm
Working pressure: 38 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 2

Same system

Related Hoses

Diagram Pipe No. 3

4265833

Installation route: 大臂(前段)~大臂(后段)

Length: 1,300 mm
Specification: DN19;4SP-12;31Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 8

4269799

Installation route: 控制阀(破碎器)~过渡阀块(破碎器)

Length: 900 mm
Specification: DN6;1SN-4;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 7

4269795

Installation route: 控制阀(破碎器)~过渡阀块(破碎器)

Length: 650 mm
Specification: DN6;1SN-4;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 12

4452263

Installation route: 小臂破碎器截止阀右

Length: 1,800 mm
Specification: DN25;4SH-16;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 11

4425783

Installation route: 分配阀右~过渡阀块(破碎器)

Length: 1,150 mm
Specification: DN10;2SN-6;34.5MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 16

4402701

Installation route: 控制阀(破碎器)~电磁阀(破碎器)

Length: 720 mm
Specification: DN6;1SN-4;7MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 25

4311809

Installation route: 控制阀(破碎器)~回油铁管(分配阀)

Length: 1,900 mm
Specification: DN12;1SN-8;7MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 16

4250079

Installation route: 大臂(破碎器)~铁管(破碎器)

Length: 1,000 mm
Specification: DN19;4SP-12;34.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
